C Mount Lenses for m43
  • AriaAria
    Hi guys,

    I wanted to know if anyone has experience with C Mount Lenses. I was looking at some different lenses and really don't understand the difference between the CCTV, 16mm, 2/3" C Mount Lenses and if they can work with the GH1.
    I also noticed that they make mention of some Lenses being 1" or 1/2". What does this mean for use with a GH1?

    Could a Lens like this be used? http://www.bhphotovideo.com/c/product/341297-REG/Pentax_C60812_C60812_8mm_to_48mm.html

    Photobucket
  • 140 Replies sorted by
  • monks19monks19

    Is there any lenses like this that can do, for example, 70 to 120mm at f2.8 or faster (so I can use it with the 12.5-75mm instead of one long lens like the 16 to 160mm) ? I've been fooking for something like that for easier portability (especially handheld) ?

    Thanks to answer.

  • Vitaliy_KiselevVitaliy_Kiselev

    50mm F1.4 lens


    http://bigstreetguns.com/2016/06/review-50mm-f1-4-cctv-c-mount-lens-micro-43/

    800 x 611 - 41K
  • balazerbalazer

    Any 2/3" TV lens will be o.k. on the GH2 in ETC mode, if you can mount it. E.g., 12.5-75 mm lenses are 2/3", but not all of them have mounts that will fit into a C-Mount to Micro Four Thirds adapter. Here's one that will fit: http://www.ebay.com/itm/CANON-TV-ZOOM-LENS-J6x12-12-5-75mm-842909-/222149009139?hash=item33b91cdef3:g:TTgAAOSwnFZXW162 Note how the narrow chromed mount sticks out quite a bit. Here's one that probably wouldn't fit: http://www.ebay.com/itm/PANASONIC-GP-KR202-INDUSTRIAL-CCD-CAMERA-CCTV-w-Toyo-CCTV-Lens-12-5-75mm-F1-8-/181565748943?hash=item2a462976cf:g:7vwAAOSwQJ5URuRn

  • monks19monks19

    Balazer, which one of those lens you mentioned earlyer would you recommend for run & gun shootings and for live events indoor and outdoor filmed with a GH2 (weddings, sports, festivals, stage works, vlogs, etc) ?

  • MikeLinnMikeLinn

  • fosterchenfosterchen

  • Vitaliy_KiselevVitaliy_Kiselev

  • zigizigizigizigi

    I record live performances with Panasonic 100-300 lens and am looking for something of the same or wider focal length range but with motorized zoom. Can someone recommend me a C mount TV lens for that purpose? And is it a wise idea in general? I mean there must be some drawback I'm not aware of, like for instance I don't understand is there a way to have AF on such lens or is it all manual beyond the zoom lever etc

  • fosterchenfosterchen

  • fosterchenfosterchen

  • balazerbalazer

    The 11-110 and 12.5-75 mm lenses are for the 2/3" format. They won't cover 4k on the GH4. 1" format lenses will. You can usually guess the format of a TV zoom lens just by looking at the range of focal lengths. Most 1" lenses start at 15-20 mm, e.g. 18-108, 16-160, 15-150, 15-90, 16-100, 16-96, 17-102, 20-100, 22.5-90, 25-100, 25-350, and have maximum apertures between f/1.5 and f/2.3. The 18-108 f/2.5 is a notable exception: it's a 2/3" inch. Fujinon 1" lens models start with C, and Canon 1" lens models start with V. Canon TV-16 lenses are also 1". J is Canon's 2/3". H is Fujinon's 2/3".

  • AthirilAthiril

    Picked up a Cosmicar 12.5mm/1.8, doesnt quite cover my GH2, covers my friends GH4 and looks good, just freehanding it atm, waiting for adapter, but it looks great.

    Wanted opinions on the 1.8 zooms,

    The computar TV zoom lens, 11-110mm/1.8, is this okay on the GH4 in 4K?

    Same with Canon J6 12.5-75mm/1.8

  • balazerbalazer

    See the sensor coverage table at http://www.personal-view.com/faqs/gh2-usage/gh2-usage . The 8 mm format matches 720 ETC mode or slightly larger.

  • maxrmaxr

    Hey @nomad big thanks for fast reply. Let me bug you a little more; would GH3 ETC (x2,4) be enough? and also IF yes, would it need special mod, like the one mr. fosterchen showed in his video? Thanks again =)

  • nomadnomad

    Yes, quite good – for 8mm film…

  • maxrmaxr

    Hi guys, does anybody know if c-mount, 8mm Angenieux 13.5x6B t1:1.2 (6-80mm) is good?


  • fosterchenfosterchen

  • fosterchenfosterchen

  • LeeMLeeM

    FOR SALE!!

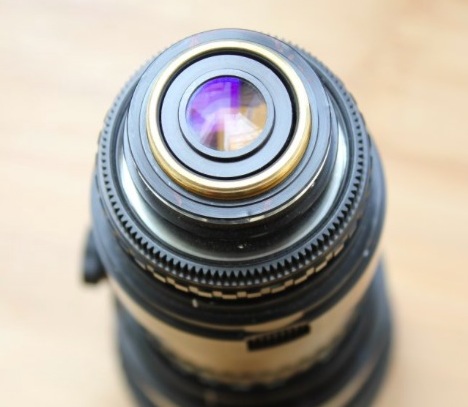

    Schneider Variogon 10-100 f/1.8 C-Mount Lens MACRO ZOOM. Get as close as 1 inch away!!!

    In mint condition, all rings turn smooth, glass is pristine, no fungus, haze or cleaning marks unlike some junk on ebay.

    Ideal for the GH4 and BMPCC.(vignette lightly or use a 1.5x adapter which comes with it as well as the C-M4/3 adapter)

    Comes with 77mm lens hood. Can ship worldwide. Would like $300 for this fabulous lens.

    Test footage here

    PM me for serious buyers only cheers

    Camera not included.

    852 x 1278 - 541K
  • balazerbalazer

    I don't have a GH4. The GH2, GH3, and GH4 all have the same pixel pitch, so you can test on any of them by shooting stills and cropping.

    The Canon Canon J6x11-II is a cheap CCTV lens, made by Spacecom I'm guessing. (same as Rainbow zooms). The Spacecom/Rainbow zoom lenses are o.k. - not great.

    I don't have the Canon J10x11 f/1.6, but I do have its brother, the J10x11 f/1.8. It's a very good lens. They are for 2/3-inch single-tube Sony shoulder cameras, circa 1980. http://www.smecc.org/sony_lens_manual_0_-_1982.htm Look for a macro ring on your lens. If it has one, it can be used as a backfocus adjustment so you don't need to shim. But you may still need to remove shims and/or o-rings from under the mount so that it will screw down far enough to allow room for a Micro Four Thirds adapter.

  • fosterchenfosterchen

    Thanks @balazer for the very helpful info!! Do you have a GH4 and various C-mount lenses to test with?
    I would love to see samples of the 2.5K using 2/3" lenses!
    I have the Canon J6x11-II 11.5-69mm f1.4 that I've been wondering how it would work on the GH4.
    And I just acquired a Canon J10x11 11-110mm F1.6 that I'm more excited about now!

    Plus my Rainbow 8-48 f1.0 will still work great in ETC mode!

  • tetakpataktetakpatak

    Fantastic post, thanks @balazer

  • balazerbalazer

    The GH4's effective sensor area in 3840 x 2160 UHD mode is 16.52 mm diagonally. Compare that to various C-mount format diagonals:

    • 1-inch: 16.00 mm. 97% coverage - an almost perfect match.

    • 16 mm: 12.70 mm. 77% coverage - crop to 2880 x 1620 in post

    • 2/3-inch: 11.00 mm. 67% coverage - crop to 2560 x 1440 in post

    • 1/2-inch: 8.00 mm. 48% coverage - use 1080 ETC mode. (same as the GH2 and GH3)

    I have all of the sensor coverage percentages in the FAQ at http://www.personal-view.com/faqs/gh2-usage/gh2-usage .

    So you get better-than-HD resolution with lots of easily found TV and cine lenses. And trust me, many of these lenses are easily delivering that resolution, at least in the center. (not always in the corners) The GH4 lets you take advantage of C-mount lenses better than any other camera.

    2/3-inch 6x zoom 12.5-75 mm f/1.8 lenses are easy to find and easy to adapt to Micro Four Thirds. Just search eBay for "12.5-75 1.8 lens". Suitable 1-inch zoom lenses are harder to find. For those not familiar, TV zoom lenses are almost all two-touch, parfocal, and have a constant f-number across the zoom range. Those are great things for shooting video. Usually you'll need to shim a C-mount lens to make it parfocal, because C-mount adapters are almost all shorter than they should be. Metabones claims their adapters have the correct flange focal distance, but I haven't tried.

  • ilia310101ilia310101

    @balazer @Cfreak thanks!

  • CFreakCFreak

    +1 Looks like it has a light vignette in some shots. Save a little more & buy yourself a Nikkor 35mm F2 and be happy.
