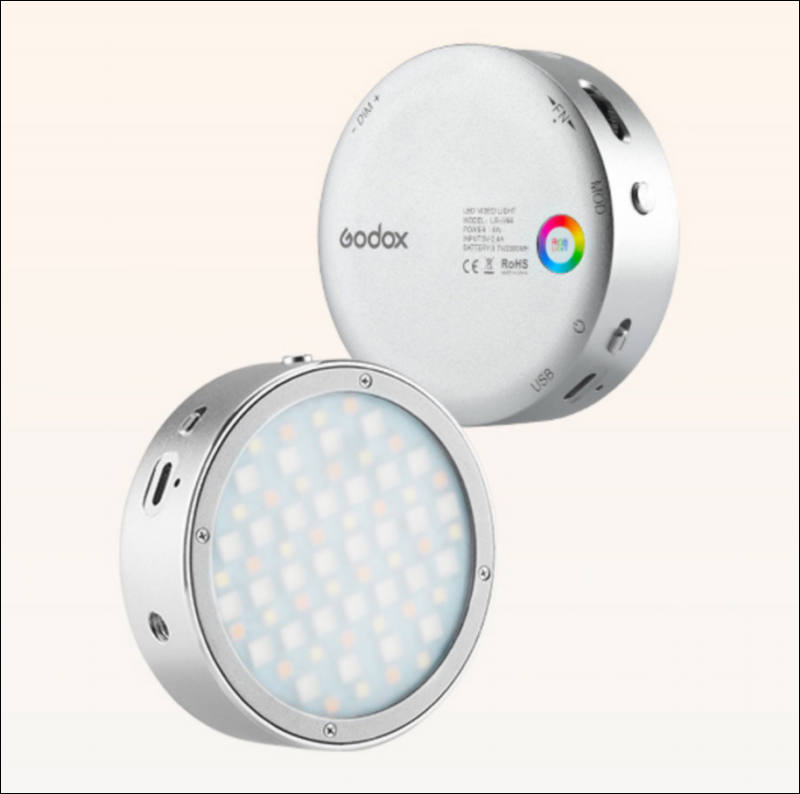

Godox R1 and RF1 small LED lights

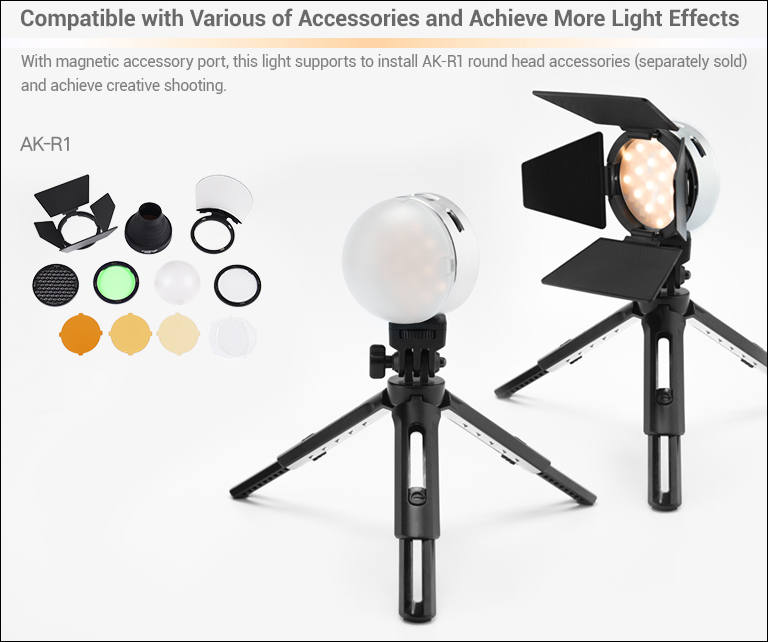

  • image

    Specs

    • High light quality with CRI 97-98, TLCI 97
    • 2500K-8500K adjustable color temperature
    • 605lux(at 0.5m)
    • 5W power
    • 0-100% light output adjustability
    • RGB mode
    • RF1 has wireless connection and cam be controlled via smartphone using Bluetooth
    • One hour battery life at full power (1,800mAh)
    • 76×24mm size
    • 170g
    • http://www.godox.com/EN/Products_Continuous_R1_RF1.html



  • 8 Replies sorted by
  • Any idea if the wireless X-system can set colour temp?

  • @alcomposer

    All such lights can do this if they have wireless control.

  • Sure they should be able to, but can they? Is there a new firmware for X-Pro etc?

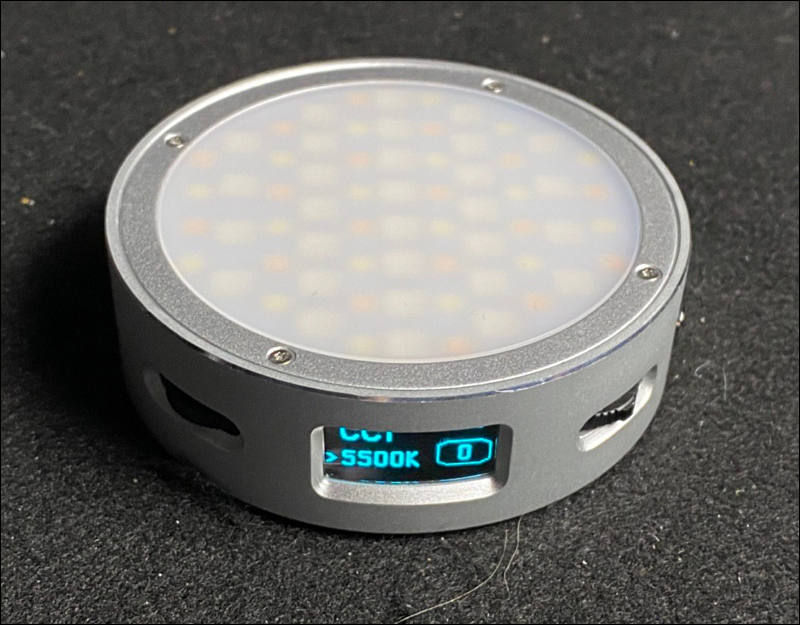

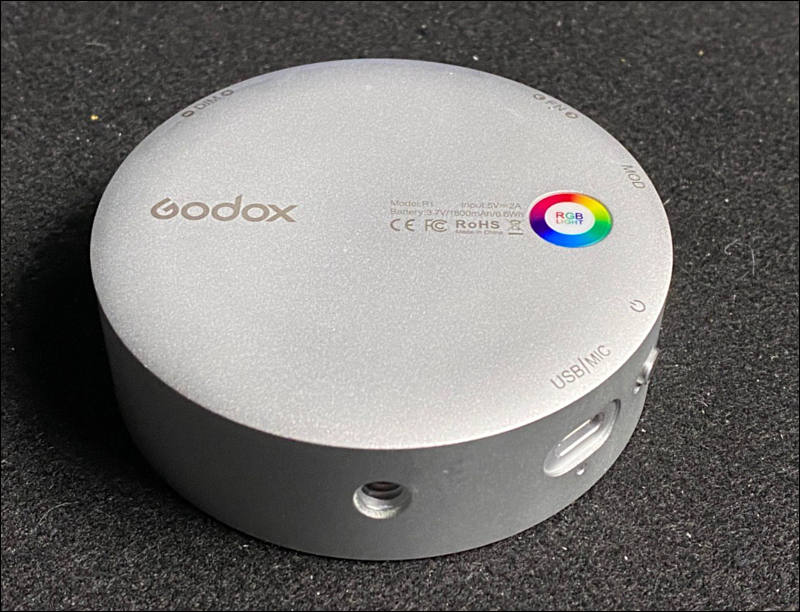

  • Review coming



    800 x 625 - 70K
    800 x 612 - 88K

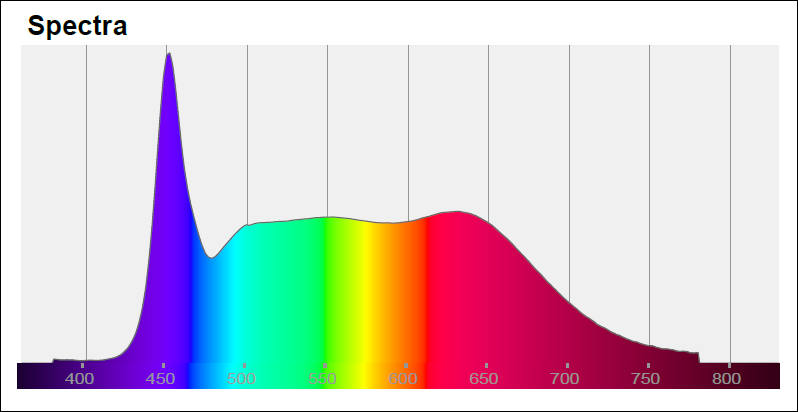

  • Godox R1 (Daylight setting), Measurement using CV600, Russian Lab processing

    We cover spectrum, color temperature, and all modern color quality standards, including latest 2016 and 2017 years ones.

    Never select light based on just CRI number.

    Focus on TM30 and CIE 224 and look for color distortion and Rf values.

    Godox R1 is good light with light quality suitable for videos.

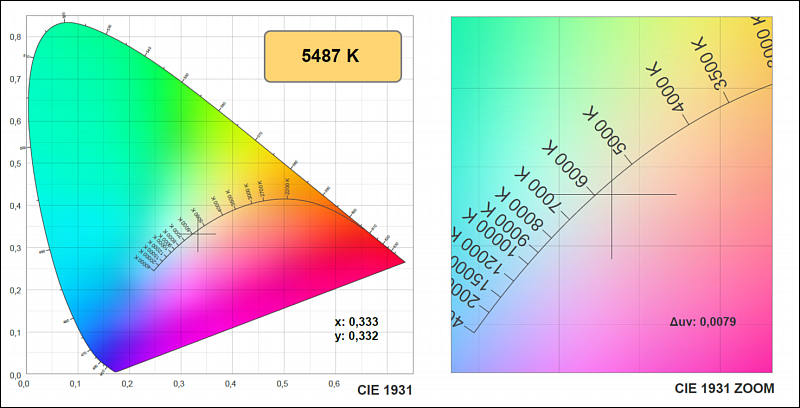

    Color temperature

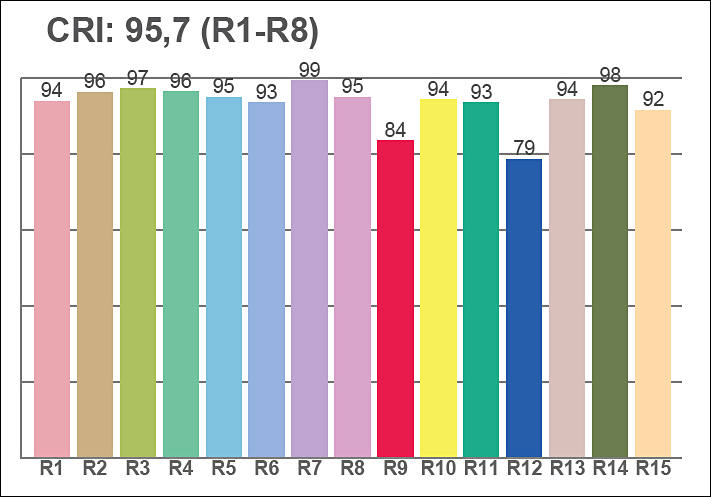

    CRI color quality

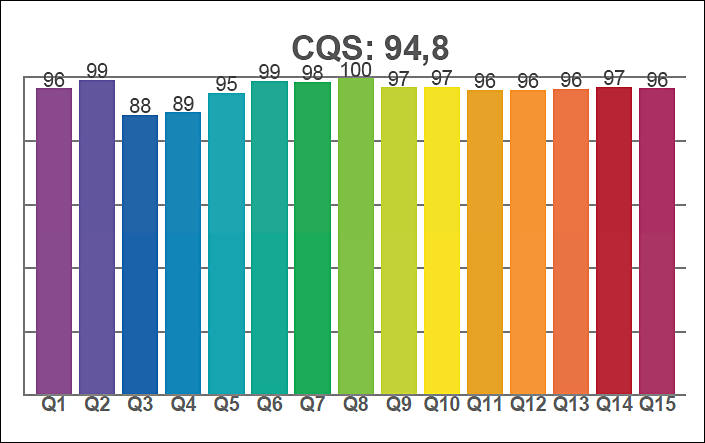

    CQS color quality

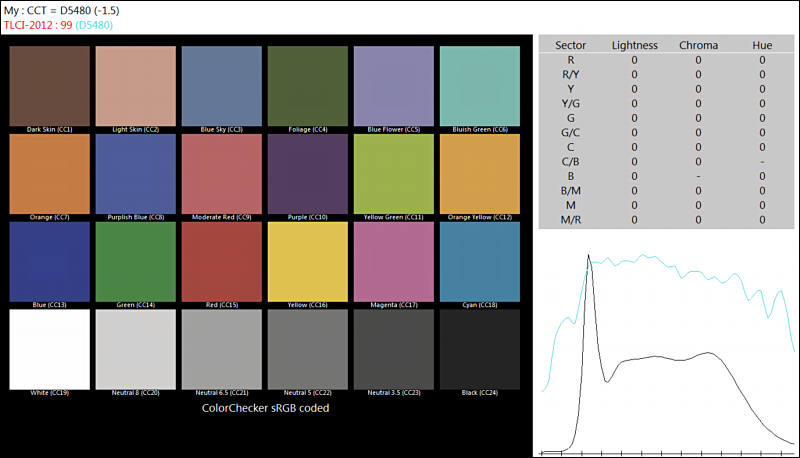

    TLCI 2012

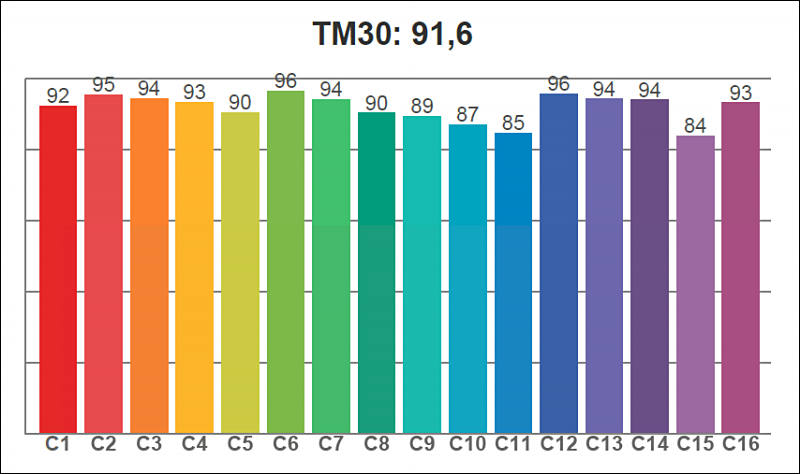

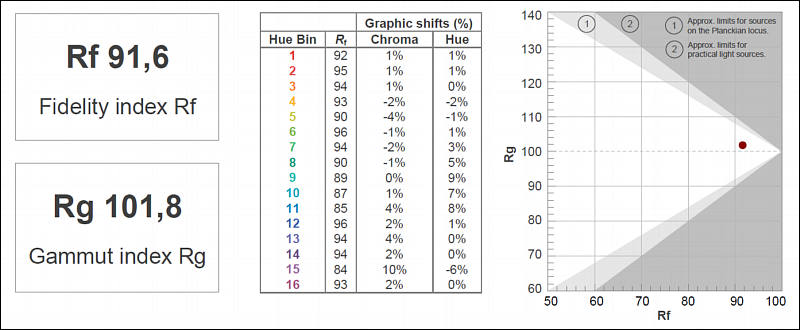

    TM30 color quality

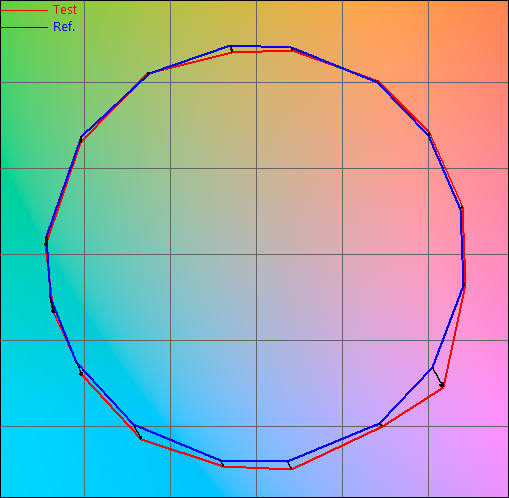

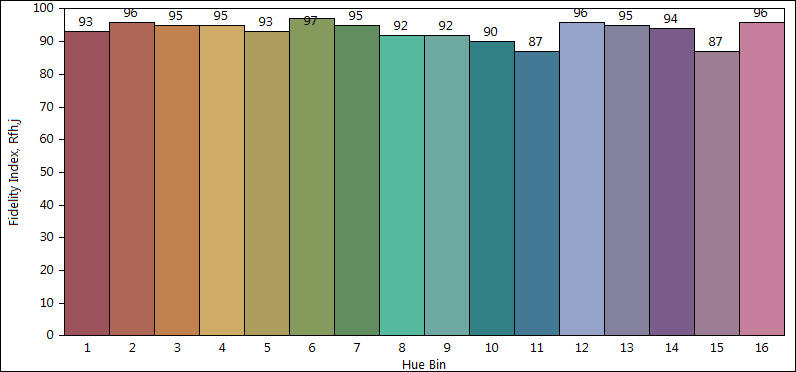

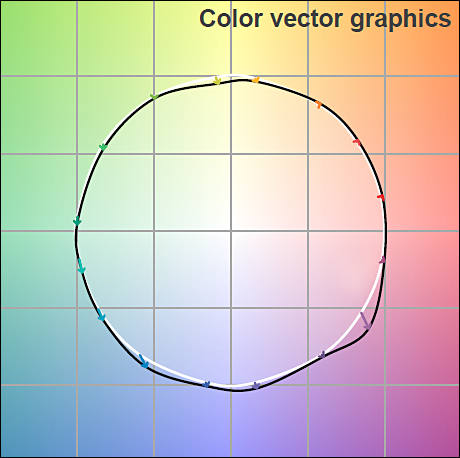

    TM30 details

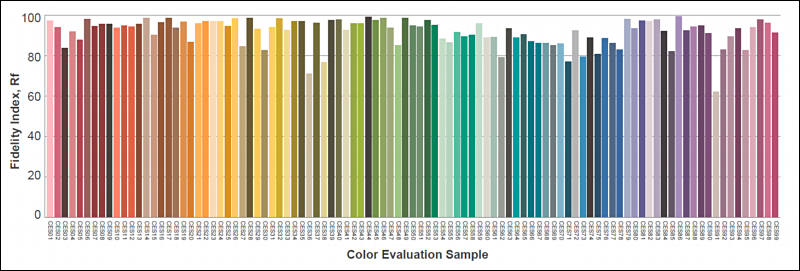

    All TM30 color samples Rf values


    CIE 224 2017



    798 x 412 - 33K
    800 x 408 - 56K
    711 x 497 - 53K
    705 x 443 - 55K
    800 x 474 - 60K
    800 x 458 - 46K
    800 x 330 - 47K
    460 x 458 - 31K
    800 x 271 - 62K
    509 x 498 - 44K
    796 x 372 - 42K
  • Colors

    RGB coverage is not very good, as usually nice led RGB lights are close to Rec 2020 points.

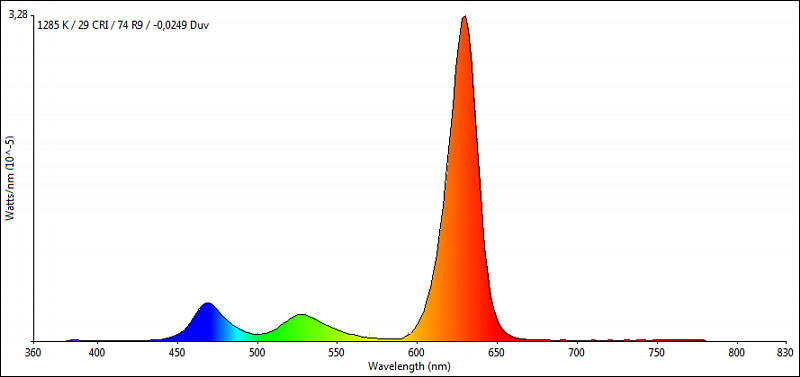

    R

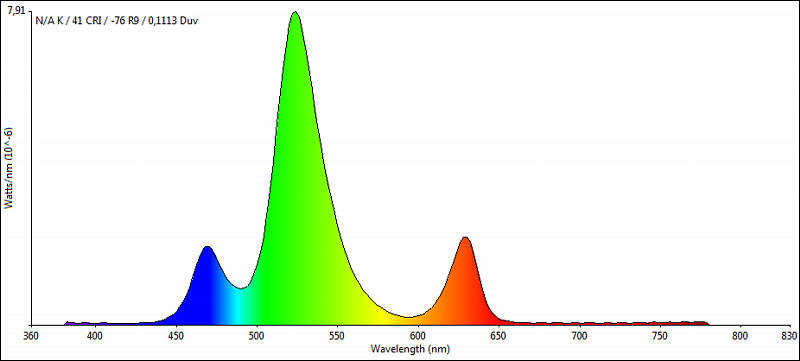

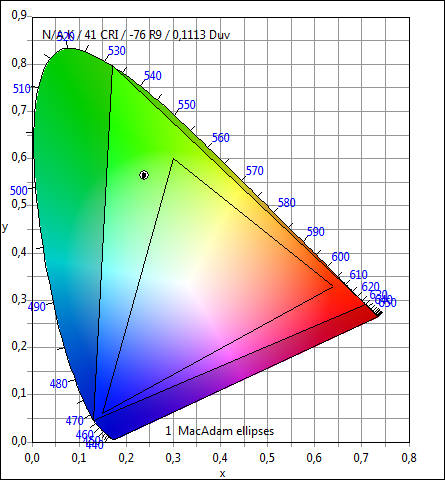

    G

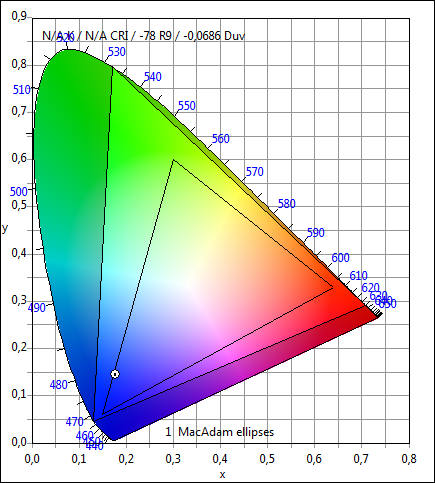

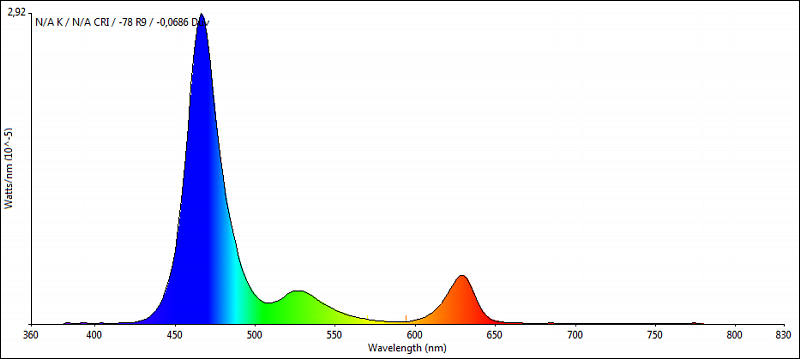

    B



    800 x 377 - 28K
    440 x 478 - 54K
    800 x 361 - 28K
    445 x 480 - 55K
    800 x 359 - 28K
    435 x 483 - 54K
