Cameras and lenses cut in half

Vitaliy_Kiselev

Pentax K-5

Mihuel

Wow, this is a very good porn :-)

Vitaliy_Kiselev

If you know any other photos, let me know.
I plan to collect them here :-)

Vitaliy_Kiselev

Lenses

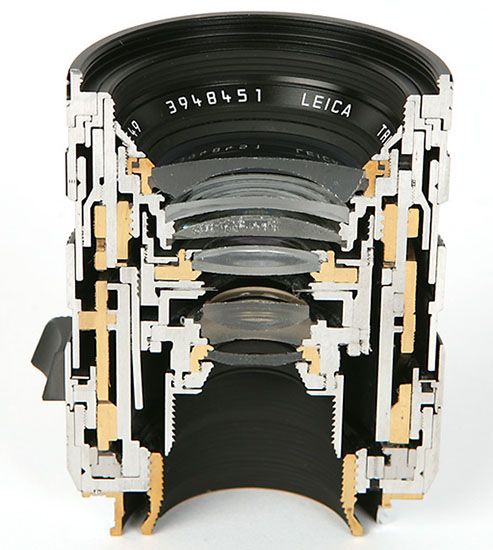

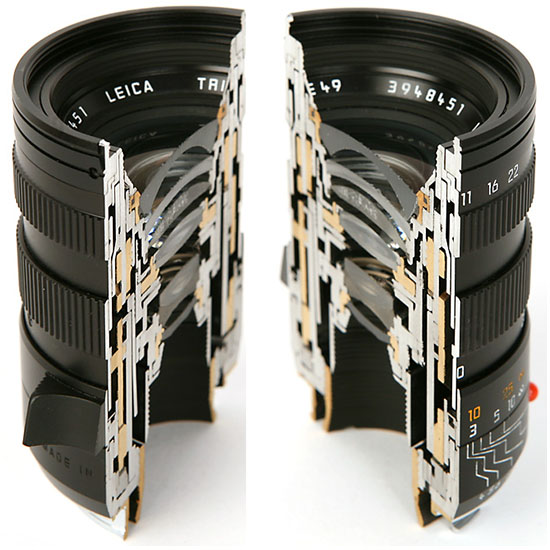

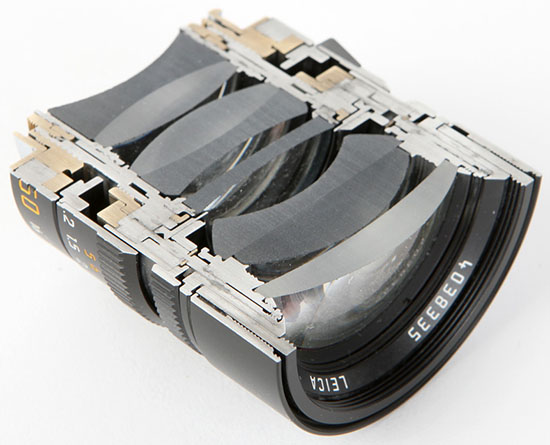

Leica lens
From: http://www.petapixel.com/2011/05/13/cross-section-views-of-leica-lenses/

Mihuel

Unfortunately I do not know, but if I find something I will let you know it. It's more interesting to watch this anatomy :-)

Vitaliy_Kiselev

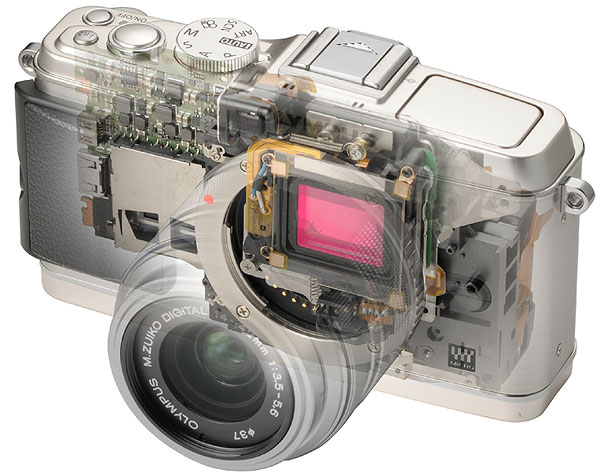

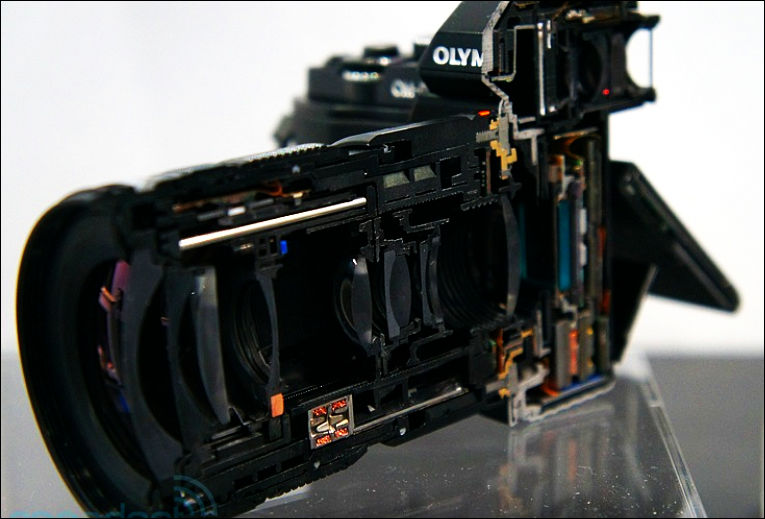

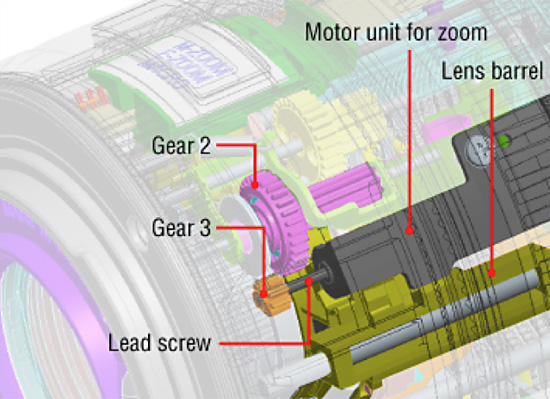

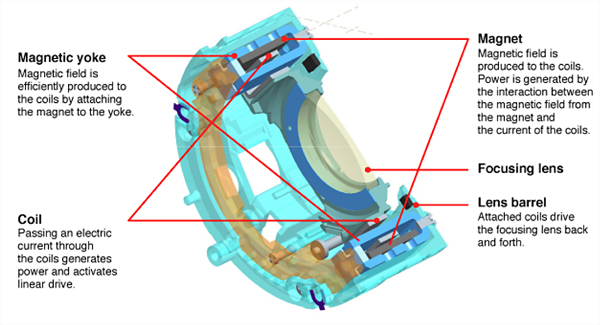

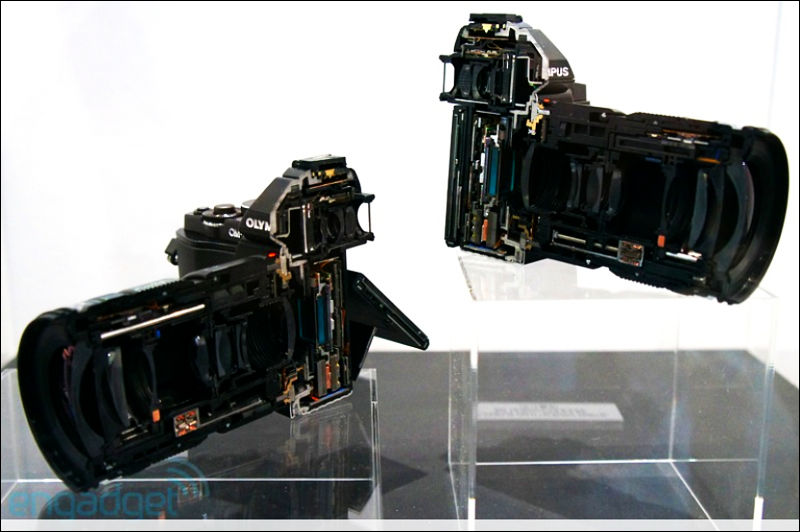

Not exactly cut in half, but also interesting:

Via: http://www.photoscala.de/Artikel/Test-Praxis-Olympus-PEN-E-P3

brianluce

Related question, V, when you reinvent these GH cams and hack them, you never actually open the cams do you? You just patch in with USB or whatever right? It's purely code for you right? Or is this top secret info, and you'd have to kill me if you told me.

Vitaliy_Kiselev

@brianluce
If you mean firmware hacking - it is software.
If you mean dumping - it is hard hardware stuff.

brianluce

@Vitaliy
Thanks, that's interesting, didn't realize you cracked into the physical camera body. Someday you should post a pic of your mad laboratory where everything happens.

Vitaliy_Kiselev

ZEISS MAKRO PLANAR T* ZE 50mm/2.0

ZEISS PLANAR T* ZF2 85mm/1.4

Ralph_B

Here's something fun - not camera lenses, but high-end telescope eyepieces put into an x-ray machine! If you're into astronomy, you'll dig this. Here's a link to the original review.

http://www.svenwienstein.de/HTML/es_14mm_ethos_13mm_English.html

kron

I remember watching a TED talk about people who do this professionally, cutting things in half for pictorial purpose, this is a lot more complicated than it look.

Vitaliy_Kiselev

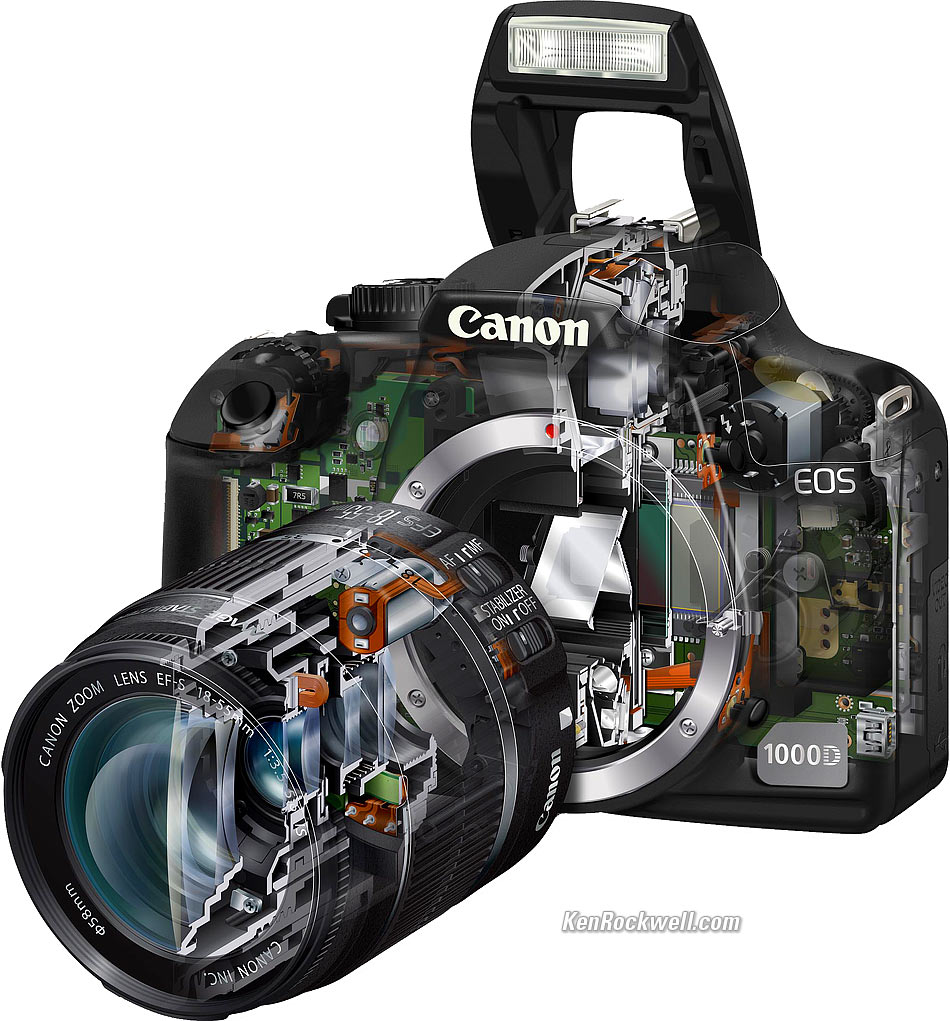

Canon 1000D

Vitaliy_Kiselev

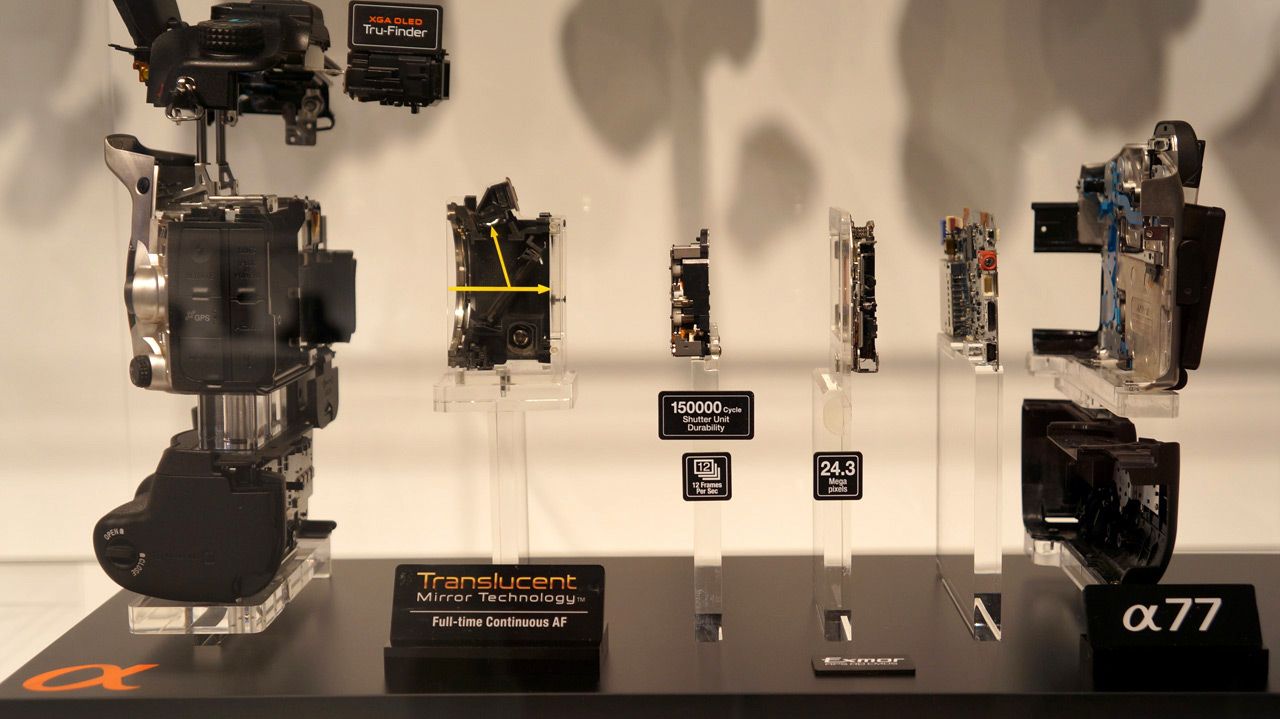

Exploded A77 (Photo by Andrew Raid)

Vitaliy_Kiselev

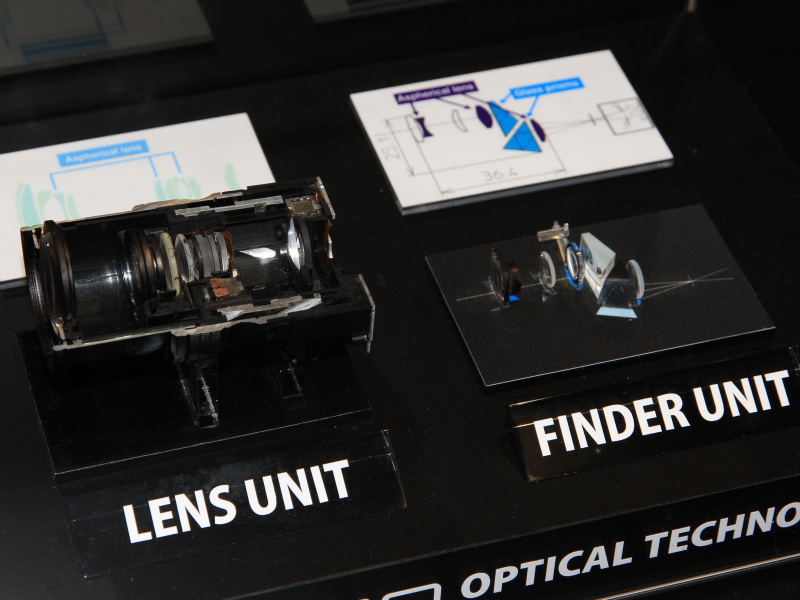

Fujinon lens

Vitaliy_Kiselev

raoul

X-rays of Lomo (top) and Hawk (bottom) 100mm anamorphic lenses. Do you see any similarity?

Well I guess Hawk copied Lomo as those damned capitalists allways do!

http://members.optusnet.com.au/~smort1/lomos/lomos

raoul

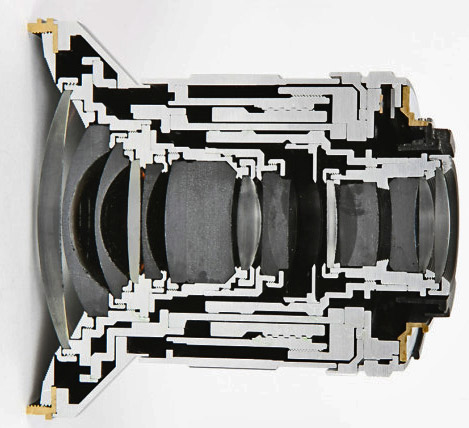

I just noticed there is a guy selling halfes of Zeiss lenses on Ebay. Here are two pics of 1/2 Distagon 15mm 1:2.8. He wants USD 4999 = EUR 3655 for it. The lens can be bought in shops for EUR 3200.
So is this a new business idea: Buy a lens, cut it in halves and sell the two halves for more than double the price?

I'm sure it isn't easy to cut them as kron mentioned above but a few thousand bucks a cut makes it seem quite profitable. The front glass seen in the second pic seems to have suffered in the operation.

The auction is here:
http://www.ebay.com/itm/RARE-ZEISS-DISTAGON-T-ZM-15mm-2-8-CUTAWAY-MODEL-/300610309035?pt=Film_Cameras&hash=item45fdc54bab

Check his other auctions to see more pictures of Zeiss "cutaway models" for sale.

raoul

Here is a funny article that contradicts the idea I had above:
http://www.engadget.com/2011/05/16/4-000-leica-lens-split-in-two-sold-on-ebay-as-1-000-piece-of/

@Vitaliy_Kiselew you wrote that you are looking for more lens porn pics. I found plenty by googling "lens cutaway". I'm posting just a few because I don't know how the server will react to lots of attachments. If you want more let me know, I saved quite a few on my PC.
