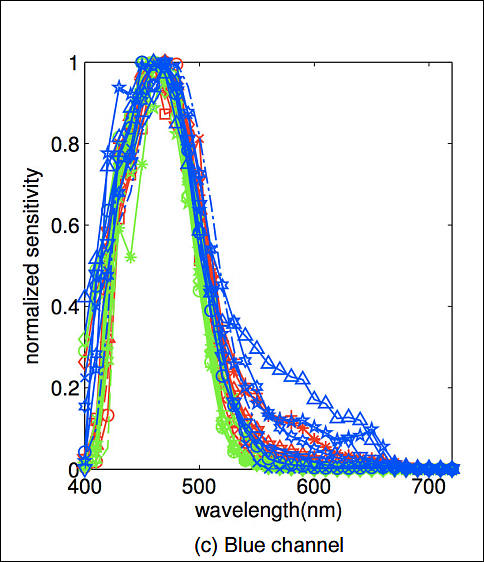

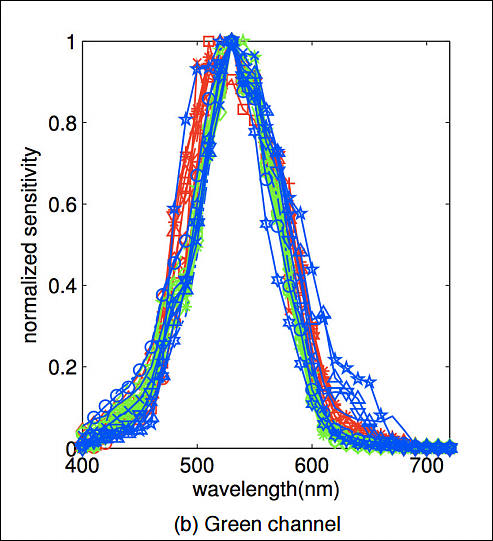

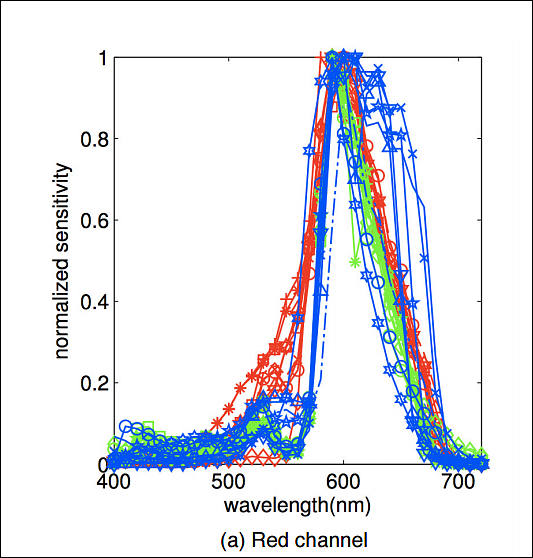

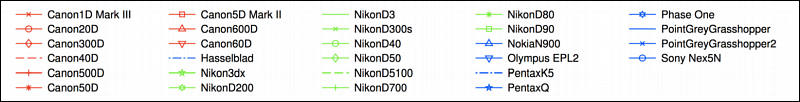

Lab: Samples of camera sensors spectrum response
-
Via http://www.gujinwei.org/research/camspec/camspec.pdf
Project page http://www.gujinwei.org/research/camspec/

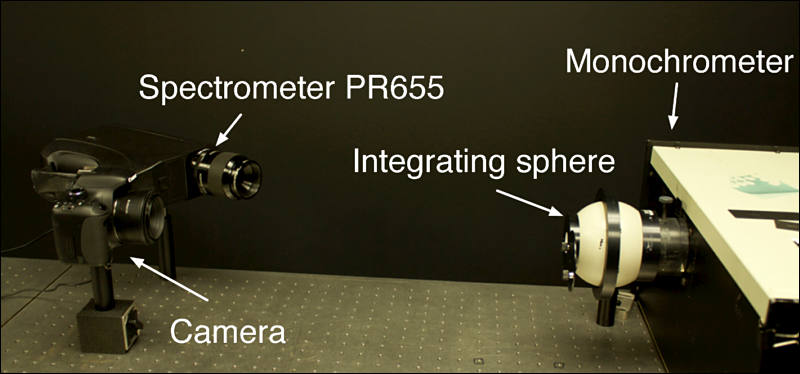

Their setup
I am not big fan of it, as using lens on camera have certain consequences (and it seems that they ignored them), as well as using spectrometer such way. Normally splitting fiber optics is used for this, and no lens on camera.
-

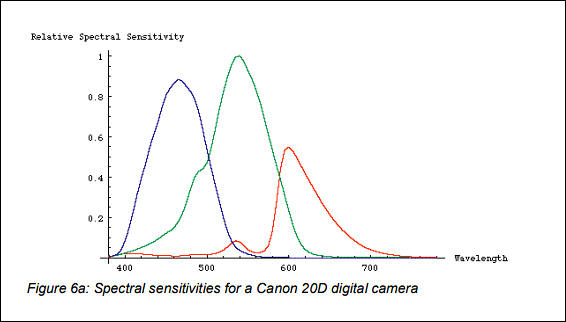

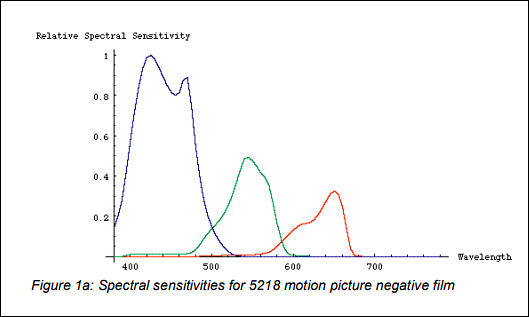

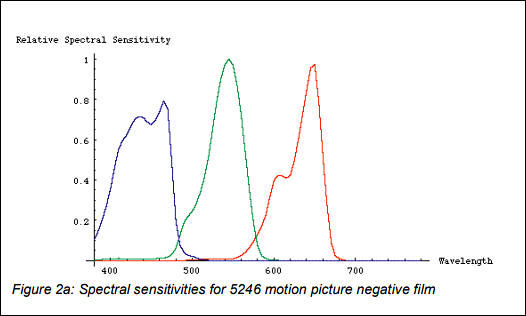

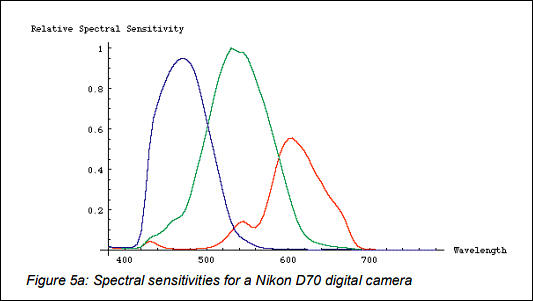

Old stuff, but film measured at same time is interesting
Via http://www.color.org/documents/CaptureColorAnalysisGamuts_ppt.pdf and http://www.color.org/documents/CaptureColorAnalysisGamuts.pd
sa524.jpg533 x 301 - 23K
sa525.jpg566 x 322 - 25K
sa526.jpg529 x 317 - 22K
sa527.jpg526 x 316 - 24K -
The interesting part is comparing the RGB separation of film with electronic sensors.
