1280x800 IPS 7" NEWAY CL76HO-X and CL76SDI monitors, amazing
  • image

    Main features:

    • 1280x800 Resolution IPS LCD Screen
    • 400nit high brightness
    • HDMI in & out, HDMI Loop Through
    • YPBPR in & out
    • Video in & out
    • Check Field ( Mono / R / G / B )

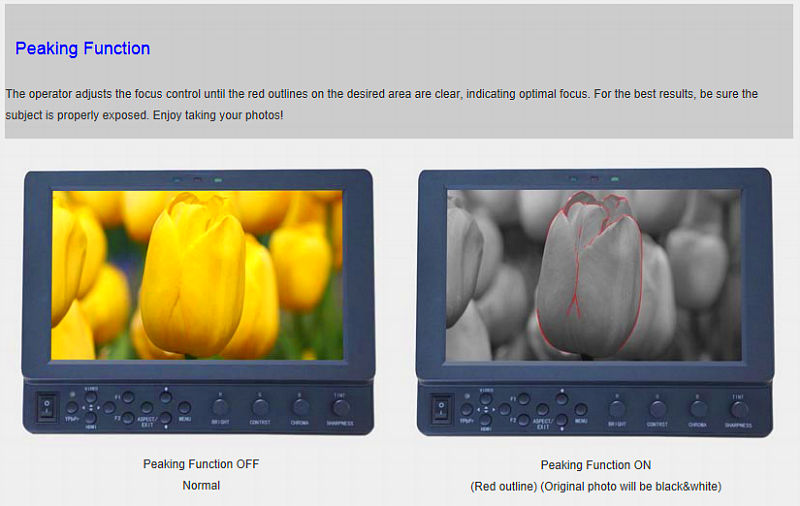

    • Peaking with red outline

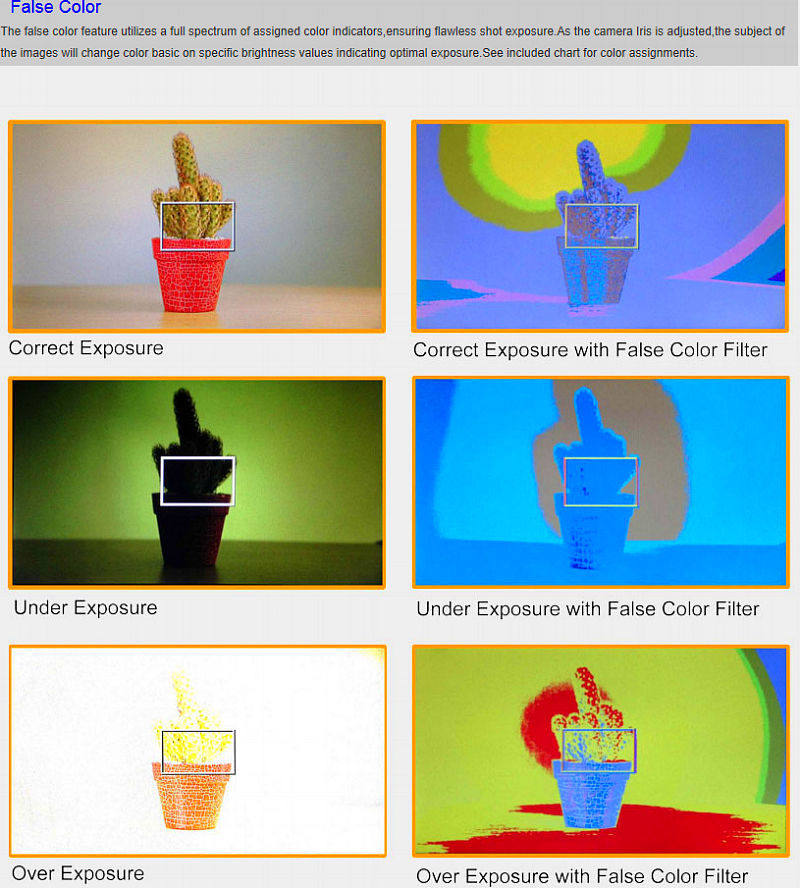

    • False Color with adjustable under luminance & over luminance warning

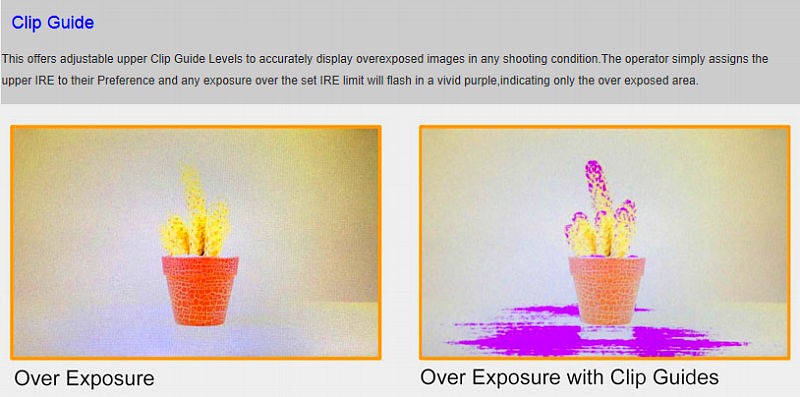

    • Clip Guides with adjustable threshold
    • Aspect Ratio ( FULL / 16:9 / 4:3 )
    • User-Defined Image Ratio ( H-Start / H-Size / V-Star / V-Size )
    • DSLR Scaling ( FULL Screen / 16:9 / 3:2 / None )

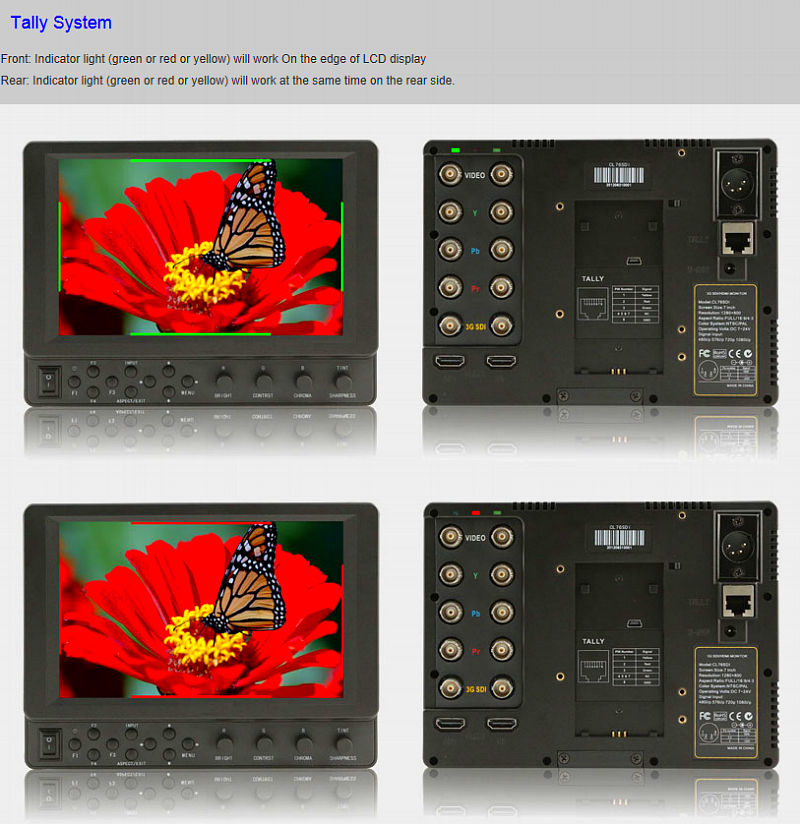

    • Tally System
    • Movable Pixel-To-Pixel ( Left / Right / Up / Down Movable)
    • Side-By-Side Freeze Frame ( Window 1: 16:9 Mode / Windows 2: 4:3 Mode )
    • Guides ( 4:3 & 16:9 Framing Safe Area)
    • 5 User-Defined Groups
    • Under Scan
    • 4 kinds DV Battery Plate for choice:
      1. NWNP-F960 ( SONY “L” Type Series ) - default
      2. NWLP-E6 ( Canon 5D )
      3. NWD54s ( Panasonic “D54” Series )
      4. NWBP945 ( Canon “900” Series )









    Deal price: $385 (available for forum members only), include free shippping, ask in PM for regions
    CL76SDI version with 3G-SDI input and output is avaibable for $699


    Send me personal message (on the left column at http://www.personal-view.com/talks/profile/1/Vitaliy_Kiselev ) if you want to purchase monitor.




    <br

    800 x 506 - 69K
    800 x 397 - 70K
    800 x 888 - 148K
    800 x 824 - 125K
    744 x 695 - 74K
    743 x 385 - 47K
    800 x 443 - 43K
    679 x 668 - 69K
  • 266 Replies sorted by
  • Now we're talking!!

  • Does this have a 1:1 pixel zoom mode? (is that what DSLR scaling: none means?)

  • @balazer

    Yep, and it is also movable (you can shift the part you look at).

  • I've seen ones like that with 1280x600 but never one with IPS and 1280x800, that must be one sharp monitor!

  • What is the tally system?

  • @DrDave

    Yep. It is sharp and very good quality.

  • @spacewig

    Lights allowing you to see camera status. For example, can be used in studio and multiple cameras so operator could see if his camera is now active one.

    This monitor have ones in front and small lights on back.

  • ill buy this one :D in 15 days aprox.

  • @DrDave, @balazer
    zoom function with this monitor 1280x800 vs 1024x600 pixel-to-pixel comparison:

    This thing looks just amazing!

    1280x800 vs 1024x600.jpg
    811 x 253 - 57K
  • This looks amazing, hope they will make 5" too

  • anamorphic mode?

  • +1 for 5" version and 2,35:1 guide lines

  • @christianhubbard

    It has custom aspect ratio, so it may work good for anamorphic

  • HD-SDI version CL76SDI could be useful for many

  • Looks like a useful bit of kit. I'm a wee bit concerned, however, about that cactus flipping us the finger!

  • Does the SDI version include HDMI aswell?

  • @evero

    Just look at photos adove, all is clear from them :-)

  • I've used a small HD dp6--it's nice, but the focus assist+ feature is too dark, and they don't highlight things in red :(

    Look forward to reviews from people who purchase this! Please post them if you get one! :-)

  • Looks like a real winner.

  • that seem the one!

  • Can anyone explain, why SDI option always add minimum 300 USD to monitor price?

    Will this monitor work with SDI to HDMI converter?

  • Can anyone explain, why SDI option always add minimum 300 USD to monitor price?

    I have no idea, may be because SDI monitors are intended to people who have SDI camera.

    Will this monitor work with SDI to HDMI converter?

    Why not?

  • Wow, impressive deal!
