Old wide angle lenses (24mm, 28mm) on m43 ?

lenuisible — Wed, 07 Dec 2011 07:17:17 +0000

Hi everyone,

I read that wider than 35mm RF (Leica) lenses doesn't perform well on m43 (for some optical reasons), does anyone have a wide reflex lens that works well ? I'm looking for a cheaper alternative to the Nokton for a friend, and was wondering if a canon fd 24mm 1.4 would be a good purchase for around 400€.

85mm F1.8 Sony FE Lens

Vitaliy_Kiselev — Tue, 07 Feb 2017 09:10:33 +0000

Specifications

9 elements in 8 groups
80 cm min focusing distance
0.13x magnification
9 rounded blades
Filter thread - 67 mm
Dimensions - 78 x 82 mm
Weight is 371g
$598 at https://www.amazon.com/dp/B06WLGFWGX/
or https://www.bhphotovideo.com/c/product/1317562-REG/sony_sel85f18_fe_85mm_f_1_8_lens.html

12-35mm F2.8 II Panasonic 2017 lens

Vitaliy_Kiselev — Thu, 05 Jan 2017 00:11:12 +0000

Specs

Improved AF performance
Support for 240fps modes
Improved Power OIS performance
14 elements in 9 groups, 4 asph lenses, 1 Ultra extra-low dispersion lens, 1 Ultra High Refractive Index lens
58mm filter
67.6mm diameter x 73.8mm length
Preorder - https://www.amazon.com/Panasonic-Professional-Mirrorless-Optical-H-HSA12035/dp/B01MY1ICID/

LUMIX G X VARIO 12-35mm / F2.8 II ASPH. / POWER O.I.S. (H-HSA12035)

Versatile usage ranging from portraits and landscape to street photography.

Achieves handheld shooting without using a flash thanks to the F2.8 high-speed aperture and 5-axis Dual I.S.2. even in low-lit situations, including indoors.

Splash/dust-proof and freeze-proof down to -10℃ with a rugged design for heavy field use.

Supports high-quality video recording(as described above).

The lens system comprises 14 elements in 9 groups including 4 aspherical lenses with 5 aspherical surfaces, 1 UHR (Ultra High Refractive Index) lens and 1 UED (Ultra Extra-Low Dispersion) lens.

Panasonic’s black box technology Nano Surface Coating is applied to minimize ghosts and flaring.

Max.240-fps sensor drive for high-speed, high-performance AF.

The HSA12035 will be available in black for $999.99 in March.

24-70mm F2.8 DG OS HSM Sigma Art Lens

Vitaliy_Kiselev — Sun, 19 Feb 2017 13:02:02 +0000

Specs

19 elements in 14 groups, 3 HLD and 4 aspherical elements
0.37m minimum focus distance
Ring type ultrasonic motor
Full time manual focus adjustment
Has distance scale
F22 minimum aperture
9 diaphragm blades
Sealed
82mm filters
88mm x 108mm
Dedicated hood supplied
Canon EF, Nikon F (FX), Sigma SA Bayonet mounts
$1299 at https://www.bhphotovideo.com/c/product/1321309-REG/sigma_24_70mm_f_2_8_dg_os.html

17mm F1.2 Pro Olympus lens

Vitaliy_Kiselev — Sun, 20 Aug 2017 05:59:52 +0000

Specs

15 elements in 11 groups, 1 Super ED, 3 ED, 1 ED-DSA, 1 EDA, 1 Super HR, 1 aspherical
F16 minimum aperture
9 diaphragm blades
20cm min focusing distance
62mm filters
stepper motor autofocus
full time manual override
390 g
68mm * 87mm
Magnesium alloy
Weather sealed
Lens hood included
Available late January 2018
$1,199.99
- https://www.amazon.com/Olympus-Zuiko-17mm-f1-2-Black/dp/B0767MMV1Q/
- https://www.bhphotovideo.com/c/product/1366998-REG/olympus_v311100bu000_m_zuiko_digital_ed_17mm.html

Video-Friendly Lenses for Lumix DSLRs

LPowell — Mon, 05 Sep 2011 14:46:59 +0000

Although a wide variety of lenses can be adapted for use with Lumix DSLRs, most still photography lenses have subtle drawbacks that make them less suitable for video shooting, regardless of the quality of the images they can capture. In order to shoot consistent, production-quality footage, it's often desirable to mount a DSLR and lens on a rig that provides traditional movie camera features:

* Stabilization and control of camera movement
* Matte box shading of camera lens
* Direct, tactile control of lens aperture
* Follow focus control of lens focus

Lenses that adapt well to these requirements will possess a combination of subtle features that are often omitted from manufacturers' data sheets and overlooked in published reviews. While vintage lenses provide full manual controls, their compact, old-school design often makes them unsuitable for use on a rig. At the other extreme, modern trends in auto-focus lens design have eliminated a number of manual lens features that remain essential to videographers. In many cases, the most usable lenses for video come from early generations of auto-focus lenses that combined vintage manual controls with modern lens design.

Here's my list of features that make a lens video-friendly:

* Manual aperture ring
* Direct-coupled focus ring
* Proper focus ring rotation
* Non-rotating outer barrel (internal focus)
* Non-extending outer barrel (internal zoom/focus)
* Constant field of view
* Constant f-stop aperture
* Rotational zoom ring

While few lenses possess all the above features, a good video lens will make up for any deficiencies with solid performance in other aspects.

* Manual aperture ring

Lenses that lack a manual aperture ring are problematic for video.

Vintage manual-focus lenses all have manual aperture rings, and most can be set to an auto-iris mode for in-camera control of aperture in shutter-priority mode. Many auto-focus lenses have eliminated the manual aperture ring, relying entirely on camera controls to set aperture in manual mode. This includes all Lumix, Zuiko Digital, Canon EOS, and Nikon G-type auto-focus lenses, as well as most currently manufactured lenses by Tokina, Tamron, and Sigma.

* Direct-coupled focus ring

Lenses with an electronic focus ring are problematic for video.

While all auto-focus lenses can be manually focused, not all of them are truly manual. The focus rings on Lumix, Zuiko Digital, and many Sigma HSM lenses are not directly coupled to the lens' internal focusing mechanisms. As a result, their focus rings continue to rotate uselessly beyond max and min focus limits. Lenses like this cannot be used on rigs with follow focus attachments, since focus ring position is completely uncalibrated.

* Proper focus ring rotation

Lenses with contrary focus ring rotation are problematic for video.

When mounted on a rig with a follow focus attachment, the focus ring rotation of the lens will determine the rotation direction of the follow focus wheel. Regardless of which side of the lens the FF wheel is mounted on, it's important that focus-pulling direction be consistent among all lenses used on the rig.

With Lumix, Zuiko, EOS, and Sigma lenses, infinity focus is at the counter-clockwise end of focus ring rotation. With Nikon and Pentax lenses, infinity focus is at the clockwise end of focus ring rotation. Tokina, Tamron, and Samyang/Rokinon lenses are usually built with the appropriate focus ring rotation for each type of lens mount. Sigma lenses, however, always rotate in the Lumix direction, regardless of the lens mount. For follow focus use, I prefer lenses that rotate in the Nikon direction because it pulls focus closer as I rotate the FF wheel toward me.

* Non-extending outer barrel

Lenses with an extending outer barrel are problematic for video.

Most zoom lenses, both manual and auto-focus, are designed with outer lens barrels that extend when the lens is zoomed and/or focused. While the barrels on most vintage prime lenses do not rotate, they usually extend when focused. A lens whose length changes can be awkward to use on a rig with a matte box.

* Non-rotating outer barrel

Lenses with a rotating outer barrel are problematic for video.

Most vintage zoom lenses are built with the focus ring on the outer lens barrel. This causes any attached lens filter to rotate as the lens is focused, making these lenses unsuitable for use with polarizer and anamorphic attachments. Most modern auto-focus lenses use internal focusing mechanisms that avoid these issues.

* Constant field of view

Lenses that breathe noticeably while focusing are problematic for video.

The focal length of almost all lenses will change slightly as the lens is focused. This effect, known as "lens breathing", alters the framing of a shot when pulling focus, making the lens appear to zoom as well as shift focus. This can ruin a shot if it is noticeable enough to be distracting.

* Constant f-stop aperture

Lenses with variable f-stops are problematic for video.

On many zoom lenses, the actual aperture will vary when the lens is set at its widest f-stops. This will cause zooming at wide f-stops to visibly affect exposure settings, which can ruin a video clip.

* Rotational zoom ring

Lenses with push-pull zoom rings are problematic for video.

Virtually all modern zoom lenses use individual focus and zoom rings. Many vintage zoom lenses were designed with a combined zoom/focus ring which zooms by sliding along the length of the lens barrel. Lenses like this are usually impractical to use on rigs with follow focus attachments.

In the next post I've reviewed a list of video-friendly manual-focus lenses that I've found well-suited for use with Lumix DSLRs. In addition, you can find a list of auto-focus zoom lenses for Lumix DSLRs at the following link:

http://www.personal-view.com./talks/discussion/859/video-friendly-lenses-for-lumix-dslrs/p5

14mm F2.8 AF Samyang Rokinon lens

Vitaliy_Kiselev — Tue, 03 May 2016 05:59:09 +0000

Available for preorder at https://www.amazon.com/Rokinon-Frame-Focus-E-Mount-IO14AF-E/dp/B01L1FZN8G/

The global optics brand, Samyang Optics (http://www.samyanglensglobal.com) today announced the long-awaited launch of two autofocus lenses: 14mm F2.8 and 50mm F1.4 lenses for Sony E mount Mirrorless cameras with full frame sensor size. The new 14mm and 50mm are the widest and brightest lenses in their classand offer superb quality images to photographers. This launching expands the boundaries of Samyang Optics photo lens line-up from manual focus only, to now include autofocus lenses.

Optimised Optical Design as Full Frame Mirrorless Camera Lens

Both 14mm F2.8 ED AS IF UMC and 50mm F1.4 AS IF UMC are specifically designed to work in harmony with full frame mirrorless cameras in Sony E mount. The flow of light is devised based on the uniqueness of the distance from glass to sensor in mirrorless cameras to create optimal performance. Along with portability of mirrorless lenses, the 14mm F2.8 and 50mm F1.4 are compatible with full frame sensors to deliver the wideness and sharpnessof image to photographers.

The 67mm filter diameter brings the maximum amount of light into the lens to create the best work of light in photography. The 14mm F2.8 is the widest angle available in the market and the F1.4 of 50mm and F2.8 of 14mm apertures are by far the brightest of full frame mirrorless lenses, offeringa beautiful bokeh effect and the best quality images under various exposure conditions.

Based on Samyang Optics’ exceptional optical technology, aspherical lenses have been included in both lenses to minimise aberration and unnecessary light dispersion, delivering high resolution from the centre to the corners of the image.

AF Performance and Ergonomic Design Based on Class-Leading Technology

These new products will be the first autofocus lenses in over 40 years of Samyang’s class-leading core optics technologies. Samyang has captured the essence of world leading image technology with their manual focus lenses and reinterpreted it into autofocus lenses. Photographers now can enjoy the prime manual lens image quality and autofocus lens. These new 14mm F2.8 and 50mm F1.4 are compatible with both phase detect and contrast detect sensors to operate fast and accurate focus detection.

The 67mm filter diameter is also the result of years of R&D for best handling, by adding stability to the photo-taking experience. Also the minimal and sleek design and metal-housing solidify the build quality with the internal focus system.

These two new autofocus lenses from Samyang Optics will be exhibited at the Photo & Imaging 2016 Show in Seoul, South Korea. The lenses will be globally available from July 2016. Further details, pricing and availability will follow.

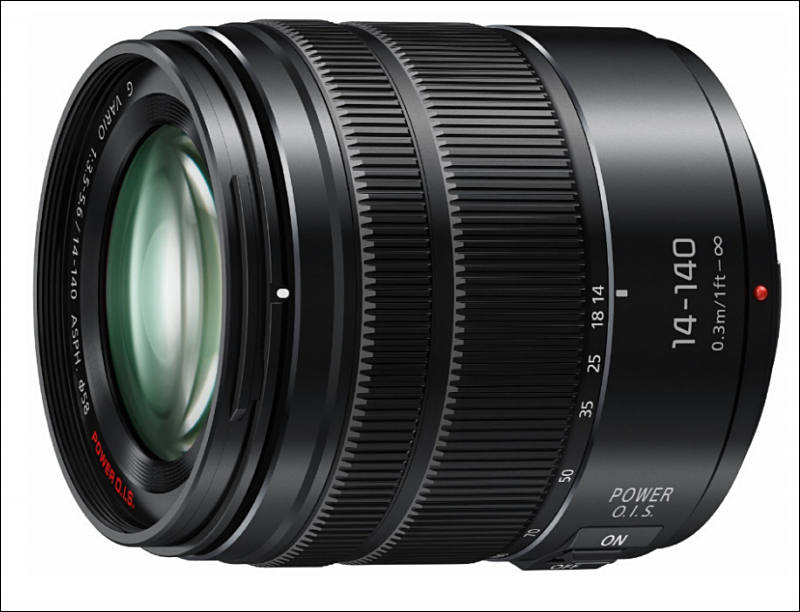

14-140mm F3.5-5.6 II LUMIX G VARIO ASPH. POWER O.I.S Lens

Vitaliy_Kiselev — Thu, 04 Apr 2019 09:56:10 +0000

Specs

14 elements in 12 groups (2 ED and 2 aspherical lenses)
Dustproof and drip proof
The appearance is almost the same as H-FS14140-KA
Filter diameter: 58 mm
7 diaphragm blades
Min focus distance is 30cm
Stepper motor AF
Size: φ 67 mm × about 75 mm
Weight: 265g
$599.99.
Will be available in May 2019

12-100mm F4 IS PRO Olympus lens

Vitaliy_Kiselev — Tue, 13 Sep 2016 21:22:34 +0000

Specs:

Video oriented lens
17 lenses in 11 groups, one DSA lens, 5 ED lenses, two super HR lenses, one HR lens, three aspherical lenses
Nano coating
0.15m-0.45m minimum focusing distance
7 aperture blades
5-axis super efficient stabilization, up to 6.5 stops
72mm filters
Dust and waterproof design
Function button
Manual focus clutch mechanism
77.5 x 116.5mm size
561g
$1299.99 USD and $1599.99 CAD
Available at https://www.amazon.com/Olympus-V314080BU000-12-100mm-M-Zuiko-Digital/dp/B01LWC5IMC/

135mm F1.8 DG HSM Sigma Art lens

Vitaliy_Kiselev — Sun, 19 Feb 2017 13:00:03 +0000

Specs

13 elements in 10 groups
0.88m minimum focus distance
82mm filters thread
Ring-type ultrasonic motor
Floating focus mech
Focus distance limit
Sealed
Dedicated hood supplied
91mm x 115mm
1130g
Preorder https://www.bhphotovideo.com/c/product/1321303-REG/sigma_135mm_f_1_8_dg_hsm.html

Samyang/Rokinon cine lenses

Vitaliy_Kiselev — Tue, 24 Jul 2012 19:28:27 +0000

Rokinon 35mm T1.5 cine lens will be available in U.S in few weeks and Rokinon 24mm T1.5 & 14mm T3.1 cine lens will be available in U.S in September.

Available at:

NANOHA 5X ultra macro lens

Vitaliy_Kiselev — Wed, 12 Oct 2011 15:35:46 +0000

Some footage by Seb Farges

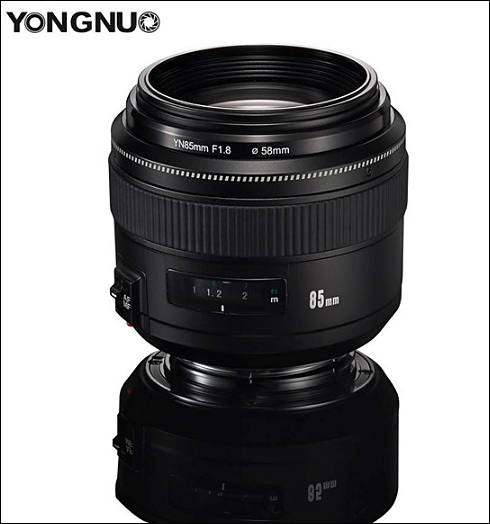

85mm F1.8 Yongnuo lens

Vitaliy_Kiselev — Sat, 18 Feb 2017 08:36:37 +0000

Specs

9 elements in 6 groups
AF
58 mm filter thread
81 x 79.5 mm size
460g
Canon FE mount, later will be Nikon F
$177 at https://www.amazon.com/YONGNUO-YN85mm-F1-8-Standard-Telephoto/dp/B01N7DIMEZ/
or https://www.bhphotovideo.com/c/product/1318133-REG/yongnuo_yn85mm_f1_8_af_mf_medium.html

135mm F1.4 FF Mitakon lens

Vitaliy_Kiselev — Sat, 17 Oct 2015 12:54:38 +0000

Specs

Focal length - 135mm
Maximum aperture - F1.4, F16 is minimum
Minimum focusing distance - 1.6m
11 elements in 5 groups, 3pcs are ED elements
11 aperture blades
Min shooting distance is 1.6m
Smooth aperture ring
Length 160 mm
Diameter 111 mm
Filter diameter 105 mm
3kg
Price - $2999
Available - November 2017

http://weibo.com/u/2111141390

50mm F1.1 Sakar, Kamlan and V2 lens

Vitaliy_Kiselev — Fri, 25 Oct 2013 15:06:52 +0000

Specs

5 elements in 5 groups
52mm filters
0.5m minimum focus distance
60mm x 60mm size
248g
$169
Sony E - https://www.amazon.com/Kamlan-Aperture-Standard-E-Mount-Mirrorless/dp/B06XTBNBK6/
Canon M - https://www.amazon.com/SainSonic-Kamlan-Aperture-Standard-Mirrorless/dp/B06XTLP56P/

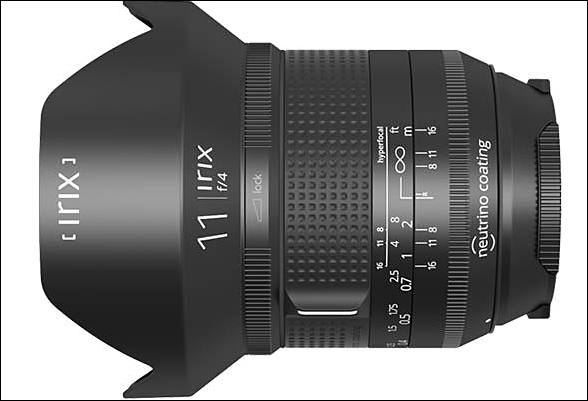

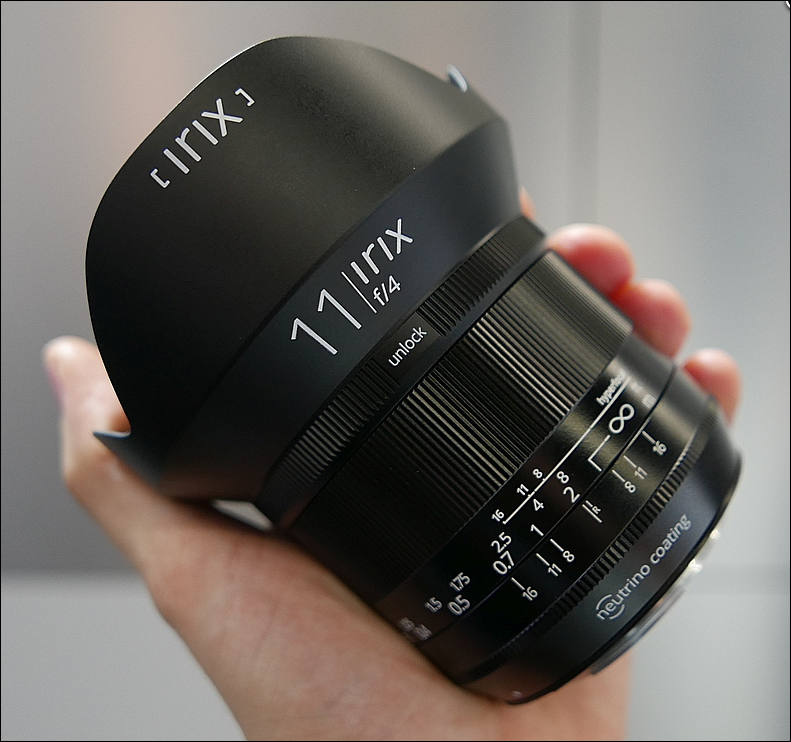

11mm F4.0 Irix FF lens

Vitaliy_Kiselev — Mon, 16 Jan 2017 12:28:37 +0000

Specs

16 elements in 10 groups
Focusing range is 0.275m - ∞
Manual focus lens with lock function
Aperture range - f/4.0 – f/22
9 rounded blades aperture
No front filter threads
Rear gelatin filter slot with 30 x 30 mm size
Available mounts - Canon EF, Nikon F, Pentax K
118 x 103 mm
Weight at 730-790g

35mm F1.8 Sony 2019 Prime Lens

Vitaliy_Kiselev — Tue, 09 Jul 2019 12:26:15 +0000

Main features

Large f/1.8 maximum aperture, weighing in at just 280 grams and measuring 65.6 mm (diameter) by 73.0mm (length); this new lens sets a new standard for portability.
Smart optical construction including an aspherical element to suppress aberration and deliver high resolution throughout the entire image frame. 9-blade circular aperture enables beautiful bokeh.
Minimum focus distance of 0.22m and maximum magnification of 0.24x offer easy access to the world of close-up photography.
Conveniently placed, customisable focus hold button and a focus mode switch for instantaneous switching between auto and manual focus.
Linear Response Manual Focus for fine, responsive manual focus control.
Dust and moisture resistant design[ii] add to the versatility and reliability of this new lens and invoke a feeling of confidence in the user.
Fast, precise and quiet linear-motor AF drive system for precise focus for both stills and movies where “wobbling” is employed for delicate continuous focus control.
$750 at
- https://www.adorama.com/iso3518f.html
- https://www.bhphotovideo.com/c/product/1492866-REG/sony_sel35f18f_35mm_f_1_8_fe_lens.html

30mm F1.4 Sigma DC lens

Vitaliy_Kiselev — Tue, 23 Feb 2016 07:07:24 +0000

Specs

9 elements in 7 groups
Minimum aperture - F16
Filter size - 52mm
Minimum focusing distance - 30cm
64.8mm × 73.3mm
9 Rounded diaphragm blades
265g
Available at http://www.amazon.com/Sigma-302963-Camera-Lenses-Black/dp/B01C3SCKT0/

Combining outstanding optical performance and compact design, the new affordable Sigma 30mm F1.4 DC DN Contemporary Lens brings immense value to mirrorless cameras. Boasting superior image quality with F1.4 brightness, the versatile lens covers a wide range of photo and video capture scenarios, delighting users with its beautiful bokeh effects.

Contemporary Line Performance and Value

Represents first affordable F1.4 performance lens for the mirrorless market

Sigma engineered quality within a sleek compact design

Fast, smooth AF stepping motor designed to support video

Features one aspherical element and one double-sided aspherical element producing imaging quality comparable to the Art line.

Features 9 elements / 7 groups, Minimum Aperture: F16, 52mm filter thread, Minimum Focus Distance: 11.8in, Weight: 9.3oz, Dimensions: 2.6x2.9in.

The new Sigma 30mm F1.4 DC DN Contemporary Lens will be available in Sony E-Mount and Micro Four Thirds mount. For more information, please visit www.sigmaphoto.com/30mm-f1-4-dc-dn-c

12-50mm F3.5-6.3 Olympus official topic

Vitaliy_Kiselev — Tue, 13 Dec 2011 06:38:24 +0000

* Super fast AF
* Powerzoom
* Lack of stabilization
* Focal length: 12-50mm
* Aperture: f/3.5-6.3
* Close focusing: 0.35 meter (0.98 ft)
* Macro: 0.2 to 0.5 meter (0.66-1.6 ft)
* Filter size: 52
* Focus and Aperture rings
* Powerzoom button on the left side of the lens
* $499 estimated price
* Available at https://www.amazon.com/Olympus-M-ZUIKO-DIGITAL-12-50mm-F3-5-6-3/dp/B0073AIXOA/

Olympus adds to its powerfully simple and growing PEN family with the first fully-compatible interchangeable Micro Four Thirds lens to incorporate an electronic motorized zoom. The M.ZUIKO DIGITAL ED 12-50mm F3.5-6.3 EZ (35mm equivalent 24–100mm) delivers smooth, quiet zooming that gives you versatility, portability and maximizes the performance of the Olympus PEN® compact system cameras.

The sophisticated new lens has a zoom ratio of approximately 4.2x, allowing photographers to capture anything from detailed, wide-angle group shots to medium telephoto-range images so you can get up close and personal for intimate portraits of children and pets – even indoors. The photographer can control the zooming speed by turning the barrel – slowly for drama, quickly for performance, or at an intermediate rate. Manual zooming is also available for those looking to take full control.

In macro mode, which can be set by pushing the zoom ring forward while depressing the macro button on the side of the lens, focusing is possible between 8 and 20 inches for close-up shooting with a maximum image magnification of 0.72X (35mm camera equivalent). The L-Fn (Lens Function) button suspends the autofocusing operation temporarily to avoid unintended focusing on obstacles that appear suddenly between the camera and the subject.

Perfect for brilliant still images and high-definition (HD) video capture, the Movie & Still Compatible (MSC) M.ZUIKO DIGITAL ED 12-50mm F3.5-6.3 EZ has also been enhanced with a linear motor that drives smooth and quiet autofocusing for stress-free shooting.

New lens elements and glass materials ensure the clearest possible imaging performance, and the proven dust and splashproof mechanism originally featured in the Four Thirds SHG (Super High Grade) series lenses is now incorporated for the first time in a Micro Four Thirds System lens. Multiple sealing rings, fitted throughout the lens body, prevent water splashes and dust from penetrating, making the M.ZUIKO DIGITAL ED 12-50mm f3.5-6.3 EZ a versatile zoom lens for the toughest conditions.

14-150mm F3.5-5.8 Di III Tamron m43 zoom lens

Vitaliy_Kiselev — Tue, 29 Jan 2013 04:40:50 +0000

Specs

Focal length - 14-150mm (equivalent to 28-300mm in the 35mm/full-frame format)
Maximum aperture - F/3.5-5.8
Lens construction - 17 elements in 13 groups
Minimum focus distance - 0.5m (19.7 in.)
Maximum magnification ratio - 1:3.8 (at f=150mm: MFD 0.5m)
Filter size - φ52mm
Length - 80.4mm (3.2 in.)
Entire Length - 85.24mm (3.4 in.)
Diameter - φ63mm
Weight - 280g (9.9 oz.)
No. of diaphragm blades - 7 (Circular diaphragm)
Minimum aperture - F/22
Flower-shaped lens hood included
m43 mount

Available at:

24-105mm F4 Sigma lens

Vitaliy_Kiselev — Wed, 16 Oct 2013 22:24:48 +0000

Lens Construction - 19 elements in 14 groups
Minimum aperture - F22
Filter size - 82mm
Minimum focusing distance - 45cm
diameter 88.6mm x 109.4mm length
Diaphragm blades - 9
Weight - 885g

Useful links:

http://www.sigma-global.com/en/lenses/cas/product/art/a_24_105_4/features.html#features04

Sigma Corporation of America, a leading researcher, developer, manufacturer and service provider of some of the world's most impressive lines of lenses, cameras and flashes, today announced its newest addition to the Sigma Art line of lenses for full-frame cameras, the 24-105mm F4 DG OS HSM.

True to its categorization as a Sigma Art lens, the new 24-105mm F4 DG OS HSM is designed for artistic expression and top-notch image quality. This versatile lens covers the basic shooting range from wide to medium tele with an inner focusing system that eliminates front lens rotation, enhancing the lens stability and allowing the use of circular polarizing filters. It also boasts a constant aperture of F4, and contains Sigma’s proprietary Optical Stabilizer (OS) technology to compensate for camera shake. Moreover, it was designed to surpass the required quality inspection of every Global Vision lens with Sigma’s own modulation transfer function (MTF) “A1” measuring system to create new optical standard to align with the high-spec cameras on today’s market.

“For many years, Sigma users have been seeking a standard zoom lens in this range,” said Mark Amir-Hamzeh, president of Sigma Corporation of America. “The 24-105mm F4 DG OS HSM is yet another example of Sigma listening to its users and delivering new and innovative products with the highest image quality.”

Amir-Hamzeh added that this new lens combines the largest possible fixed aperture to zoom ratio that will maintain optimal integrity for many kinds of photography, including landscapes, architecture, portraiture and still-life. With a minimum focusing distance of 45cm and a maximum magnification ratio of 1:4.6, this lens is also excellent for close-up photography. High-performance glass elements, including SLD, FLD, which is equal to fluorite, and glass- molded single- and double-sided aspheric lenses have been included into the optical system to prevent aberration, field curvature, distortions and color aberration. The 24-105mm F4 DG OS HSM lens is also able to suppress chromatic aberration very effectively at the telephoto-end, and can achieve superior image quality throughout the zoom range. Unlike lenses with similar specifications, this lens overcomes low peripheral brightness. Although it is designed for full frame cameras, it also works with APS-C sensors, giving an increase to focal length.

The lens’ Hyper Sonic Motor (HSM) ensures a silent, high-speed auto focus function and enables full-time manual focusing capability. The 24-105mm is also compatible with Sigma’s USB dock allowing photographers to update its firmware and change focus parameters using Sigma's Optimization Pro software. It is also compatible with Sigma’s recently announced Mount Conversion Service.

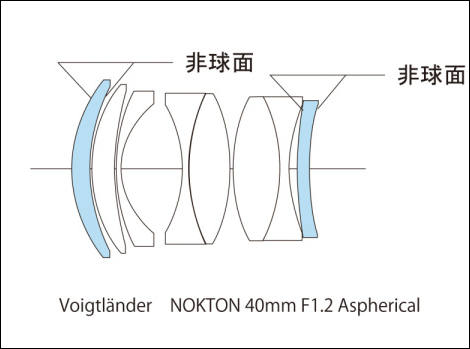

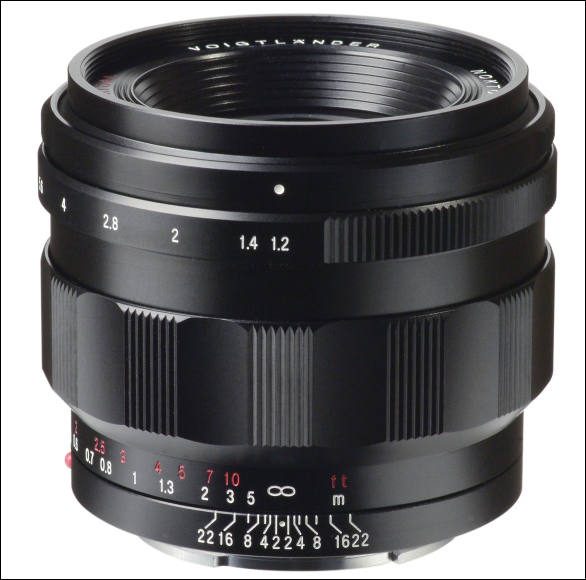

40mm F1.2 Aspherical Voigtländer NOKTON E-mount lens

Vitaliy_Kiselev — Wed, 01 Mar 2017 06:02:06 +0000

Specs

8 lenses in 6 groups including 2 aspheric lenses
1/3 stop aperture ring
Ability to switch of stepped aperture to make it smooth
10 diaphragm blades
Min focus distance is 0.35m
Filter diameter is 58 mm
Electronic chip
Sony E mount
70.1 × 59.3 mm
420g

Pricing for Europe is 1099€.

Other countries price known

¥135,000, £749 (~ $1000 USD)

12-32mm Panasonic m43 lens, aka little gem

Vitaliy_Kiselev — Thu, 17 Oct 2013 09:07:42 +0000

Specifications

8 elements in 7 groups (3 aspherical lenses, 1ED lens)
MEGA O.I.S.)
7 diaphragm blades / Circular aperture diaphragm
Minimum Aperture - F22
Closest Focusing Distance - 0.2m
Filter Size - φ37mm
Overall Length - 24mm
Weight - 70 g

Useful links:

http://panasonic.net/avc/lumix/systemcamera/gms/lens/g_vario_12_32.html

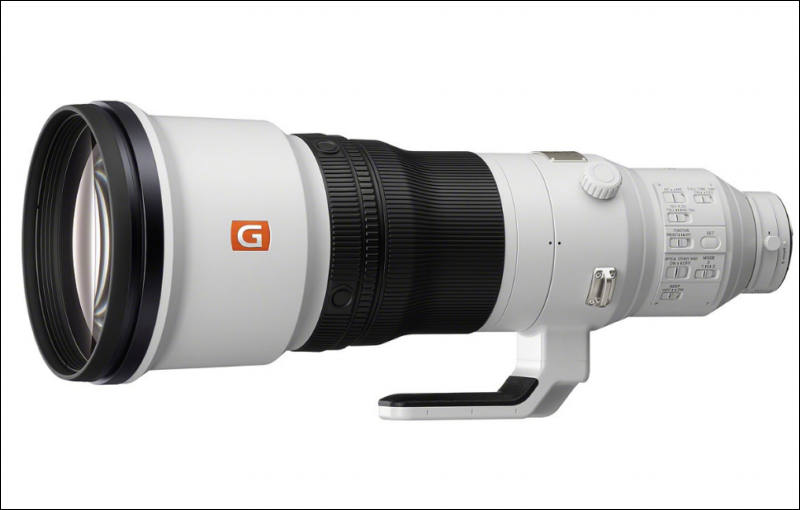

600mm F4 GM OSS Sony FE Lens

Vitaliy_Kiselev — Tue, 11 Jun 2019 09:57:03 +0000

Specs

Full-Frame Format
Aperture Range: f/4 to f/22
ED, Fluorite, and Aspherical Elements
Nano AR and Fluorine Coatings
Extreme Dynamic Linear AF Motors
Optical SteadyShot Image Stabilization
Internal Focus; Focus Range Limiter
Dust and Moisture-Resistant Construction
Fixed, Rotating Tripod Collar
Eleven-Blade Circular Diaphragm
Preorders links
- US - https://www.bhphotovideo.com/c/product/1485539-REG/sony_sel600f40gm_fe_600mm_f_4_gm.html
- UK - https://www.wexphotovideo.com/sony-fe-600mm-f4-g-master-lens-1705686/

Sony Introduces the New Super-Telephoto 600mm F4 G Master Prime Lens

Sony's longest reaching prime lens is world's lightest in its class, featuring high-performance AF, high resolution and beautiful bokeh

Sony today announced another impressive addition to its flagship full-frame G Master series lens line-up, the new FE 600mm F4 GM OSS super-telephoto prime lens (model SEL600F40GM).

Sony's longest reaching prime lens, the new 600mm includes many of the company's most advanced optical and mechanical technologies, producing exceptional image quality with extraordinary focusing speed and precision. The lightest in its class[i], weighing in at only approx. 3040g, the FE 600mm F4 GM OSS features an extremely balanced design to ensure the best possible shooting experience. Along with the acclaimed FE 400mm F2.8 GM OSS lens, the new 600mm gives professional sports, wildlife and news photographers more options for capturing subjects at great distances with extreme accuracy and detail.

"With two new lenses announced today, our growing E-mount lens line-up now includes 33 full-frame models and 51 lenses in total. The 10th model from our flagship G Master series, the new 600mm F4 raises the bar for speed, mobility and control in a super-telephoto prime lens," said Yann Salmon Legagneur, Director of Product Marketing, Digital Imaging at Sony Europe. "Combining the extensive 600mm reach with features like 20 fps shooting and AF/AE calculations at 60 times per second on the α9 or extremely high resolution, high speed performance on the α7R III allow professional photographers to create images that were simply not possible to capture before."

Fast, Precise and Quiet Autofocus

To take best advantage of the highly evolved autofocus systems of Sony's latest full-frame E-mount cameras, the new FE 600mm F4 GM OSS lens features two XD (extreme dynamic) Linear Motors that drive the lens' focus group to provide fast, precise AF and reliable subject tracking. These motors are supported by specially developed motion algorithms to minimise lag and instability, as well as to control noise levels, resulting in exceptionally quick, accurate and quiet autofocus performance, allowing the lens to capture dynamic, fast moving athletes or wildlife with ease.

Superb G Master Image Quality and Bokeh

As a member of Sony's flagship G Master series lenses, this new large aperture super-telephoto prime lens features an incredible level of image quality and detail, with outstanding contrast and resolution maintained all the way to the corners of the image. The unique optical design includes a large XA (extreme aspherical) and an ED (extra-low dispersion) element that effectively suppress all common telephoto lens aberrations, plus three fluorite elements that help to minimise chromatic aberration and suppress any amount of colour bleeding. Sony's latest bokeh simulation technologies and XA element are also utilised to control spherical aberration and help achieve exquisite bokeh.

The lens also features an 11-blade circular aperture mechanism that contributes to the high quality of bokeh in images, and has been coated with Sony's original Nano AR coating to suppress any unwanted reflections, glare, or ghosting in images.

The new FE 600mm F4 GM OSS is compatible with Sony's 1.4x and 2.0x E-mount tele-converters, producing outstanding imaging performance at extended focal lengths[iii] while maintaining fast, precise AF performance.

Lightweight, Balanced Design

Weighing in at only approx. 3040g, the new super-telephoto prime lens is the lightest in its classi, providing a level of portability and manoeuvrability that has never been achieved before in a lens of its style. Based on technology from the acclaimed FE 400mm F2.8 GM OSS lens, the lightweight design of the new 600mm lens is achieved through the usage of three fluorite elements, with a reduced number of elements deployed at the front of the barrel. Magnesium alloy is also used throughout the lens to help minimise weight and bulk.

Also inherited from FE 400mm F2.8 GM OSS, the new 600mm lens features a lens design that is not front-heavy, reducing moment of inertia that resists rotation, ensuring quicker, more precise panning when shooting handheld or on a monopod.

Durability, Reliability and Control

To withstand the harsh conditions of sporting events and wildlife photography, Sony's new FE 600mm F4 GM OSS is built with a durable magnesium alloy and a strong, lightweight carbon fibre hood. The lens is also dust and moisture resistant[iv], and its front element is coated with fluorine to resist dirt and fingerprints.

There is also an ample number of hard controls on the lens, including customisable focus-hold buttons in four different locations on the lens barrel, which can be programmed for control of features, if desired. There is also a 'Full-Time DMF' switch to immediately engage manual focus at any point, and a focus ring that features Linear Response MF for fine, responsive manual focus.

Additionally, the new lens includes built-in optical stabilisation for dynamic action and three different 'Mode' settings, including a Mode 3[v] setting with an advanced algorithm that ensures easier framing when following moving subjects. It also features a function ring with selectable 'Preset' and 'Function' settings, and a drop-in filter slot that accepts ø 40.5mm ND and other filter types, as well as the optional VF-DCPL1 Drop-in Circular Polarising Filter. The VF-DCPL1 filter can be rotated to achieve the desired polarisation while installed in the lens.

Pricing and Availability

The FE 600mm F4 GM OSS will ship in Europe in August 2019, priced at approximately £12,000 and €14,000

35mm F2.8 Canon EF-S macro IS STM

Vitaliy_Kiselev — Mon, 03 Apr 2017 06:06:42 +0000

Specs

10 lenses in 6 groups (one aspheric lens)
7 diaphragm blades with circular aperture
Minimum shooting distance: 0.13m
Maximum shooting magnification: 1x
Image stabilization up to 4 stops
49 mm filters
55.8 x 69.2 mm
Approximately 190 g
Built-in macro light
Hybrid IS
STM motor
Available at https://www.amazon.com/Canon-EF-S-35mm-2-8-Macro/dp/B06Y1HQDQQ/

50mm F1.4 Panasonic Lumix S Pro FF Lens

Vitaliy_Kiselev — Thu, 31 Jan 2019 08:40:22 +0000

Specs

13 elements in 11 groups (2 aspheric lenses and 3 ED lenses)
Minimum shooting distance: 0.44 m
Number of diaphragm blades: 11
Filter diameter: 77 mm
Size: φ 90 x 130 mm
Weight: 955 g
Dustproof and Drip-proof , can withstant-10 °
UK price is 2,299 GBP. US price is $2299.
Preorders

12-24mm F4 DG HSM Art Sigma Ultra-Wide Angle Zoom Lens

Vitaliy_Kiselev — Mon, 19 Sep 2016 22:13:32 +0000

In stock now at https://www.amazon.com/Sigma-12-24mm-Lens-Canon-205954/dp/B01LZJM7SY/

Sigma 12-24mm F4 DG HSM Art Ultra-Wide Angle Zoom for the Era of Ultra-High Resolution Digital Cameras

Boasting the renowned Global Vision image quality from center to edge, the new Sigma 12-24mm F4 features the largest aspherical glass mold in the industry, offering photographers an ultra-wide angle zoom with virtually no distortion, flare or ghosting. Encompassing the long history of Sigma wide angle lens development expertise, the new 12-24mm F4 performance highlights include constant F4 brightness and the brand new Sigma AF system with 1.3X torque boost. The 12-24mm F4 features lens elements made with FLD (“F” Low Dispersion) glass, which is equivalent to calcium fluorite in performance. Combined with an optimized power distribution, the result is outstanding image quality from center to edges. With a minimum focus distance of 9.4 inches at 24mm, photographers can compose incredible close-up shots with expansive backgrounds.

The all new Sigma 12-24mm F4 DG HSM Art lens supports Canon, Nikon and Sigma mounts. The Nikon mounts feature the brand new electromagnetic diaphragm.

The Sigma 12-24mm F4 Art lens will be available in late October and retails for a recommended street price of $1599.00 USD.

24mm F1.8 Nikon Nikkor Z Lens

Vitaliy_Kiselev — Tue, 03 Sep 2019 23:49:53 +0000

Specs

12 elements in 10 groups, 1 ED + 4 aspherical elements
Nano Crystal and Super Integrated coatings
0.25m min focus distance
Stepper focusing motor
9 diaphragm blades
72mm filters
Weather sealed
78mm x 97mm
450 g
Available in mid to late October
$1000 at
- https://www.bhphotovideo.com/c/product/1504350-REG/nikon_nikkor_z_24mm_f_1_8.html
- https://www.adorama.com/nkz2418.html

Today, Nikon Inc. announced the fast, wide- angle NIKKOR Z 24mm f/1.8 S, the latest addition to the ever-expanding NIKKOR Z lineup of lenses. The 24mm f/1.8 S is optimized for capturing everything from cityscapes to environmental portraits and is built to take advantage of Nikon's large Z-mount, delivering the ultimate combination of fast, bright and sharp performance in nearly all lighting conditions.

"The NIKKOR Z 24mm f/1.8 S continues our commitment to offering exciting prime lenses to Nikon Z 7 and Z 6 users, while also providing exceptional level of quality achieved by the S-Line of NIKKOR Z lenses," said Jay Vannatter, Executive Vice President, Nikon Inc. "The combination of wide-angle perspective and a fast f/1.8 aperture is optimal for all types of photography including landscapes, making the NIKKOR Z 24mm f/1.8 S a must-have lens to unleash the full potential of the Nikon Z series."

The NIKKOR Z 24mm f/1.8 S -- A Storyteller's Dream Lens:

The NIKKOR Z 24mm f/1.8 S joins the S-Line of high-performance NIKKOR Z lenses, giving creators an essential focal length to add to their kit of fast prime Z-mount lenses. The lens takes advantage of the most advanced NIKKOR technologies to deliver optical superiority, exceptional sharpness, beautiful bokeh and high-resolution across the entire frame, even at maximum aperture.

The new NIKKOR Z 24mm f/1.8 S was designed for photographers and videographers looking to capture gorgeous wide-angle landscapes or vivid street photography, a travel adventure or a stunning starscape. For videographers and content creators, this popular focal length is a staple for production due to its natural perspective. Thanks to the advantages of the lens' bright and fast f/1.8 maximum aperture along with the wider Z-mount, Nikon Z series users can capture exceptionally sharp images in dimly lit settings, with a lens that's ideal for nighttime shooting and astrophotography.

The NIKKOR Z 24mm f/1.8 S features 9 rounded aperture blades, allowing users to capture beautifully circular bokeh that adds a level of dimensionality to help capture compelling content. Users can confidently explore their creative potential in nearly any landscape thanks to the lens' reliable dust and drip resistant design, ideal for tough weather conditions. The lens construction also consists of four Aspherical Lens Elements and one Extra-Low Dispersion (ED) glass element to combat aberration, while Nikon's patented Nano Crystal Coat helps eliminate ghosting and flare. The 24mm f/1.8 S is further equipped with Nikon's Multi-Focusing System, which uses two AF drives in tandem to deliver superior resolving power and achieve fast and accurate autofocus, even at minimum focus distance.

In addition to achieving the top-notch image quality that storytellers and content creators have come to expect from the S-Line of NIKKOR Z lenses, the NIKKOR Z 24mm f/1.8 S is also optimized for video capture. As a popular cinematic focal length, the 24mm f/1.8 S will be a welcome addition to Z series shooters' arsenals, boasting near-silent stepping motors for ultra-quiet performance, reduced focus breathing, a customizable control ring for smooth control of aperture and exposure compensation and the ability to take advantage of the in-camera 5-axis VR + eVR of the Nikon Z series cameras.

Price and Availability

The NIKKOR Z 24mm f/1.8 S will be available in mid to late October 2019 at a suggested retail price (SRP) of $999.95. For more information on the latest Nikon products, including the new NIKKOR Z 24mm f/1.8 S and the full Nikon Z mount system, please visit www.nikonusa.com.

75mm F1.8 Olympus lens topic

Vitaliy_Kiselev — Thu, 24 May 2012 05:06:41 +0000

75mm focal length
F1.8 aperture with circular blades
3 ED and 2 HR lens elements
Premium multi-coating using Olympus ZERO lens coating technology
High speed, silent focusing with MSC lens drive technology
All metal barrel
Precision manual focus ring

Available at:

Price: 799 EUR / $899

MTF, Construction:

Samples:

Previews and reviews:

85mm F1.8 S Nikon NIKKOR Z Lens

Vitaliy_Kiselev — Wed, 08 May 2019 22:02:08 +0000

Specs

12 elements in 8 groups, 2 ED elements
Nano Crystal and Super Integrated coatings
F1.8-F16 aperture, 9 blades
0.80m min focus distance
Stepper motor AF, with manual override
75mm x 99mm
67mm filters
470 g
Comes with hood
$799.95 price
- https://www.bhphotovideo.com/c/product/1497159-REG/nikon_nikkor_z_85mm_f_1_8.html
- https://www.amazon.com/Nikon-20090-NIKKOR-85mm-1-8/dp/B07VQWGNHR/
