Intel Rocket Lake-S Desktop Processors
  • image

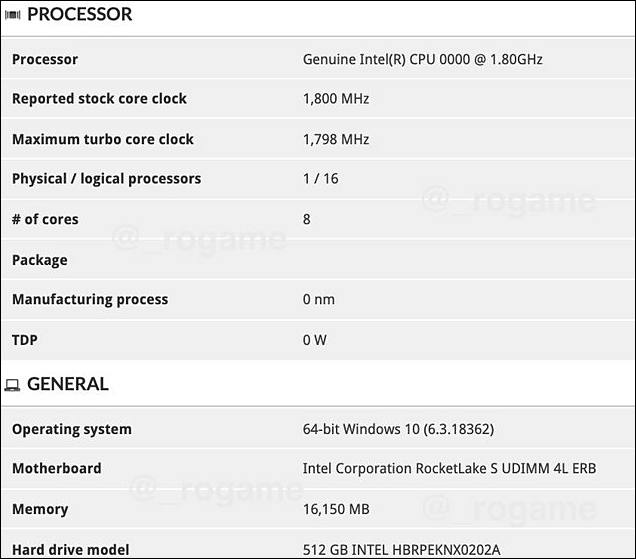

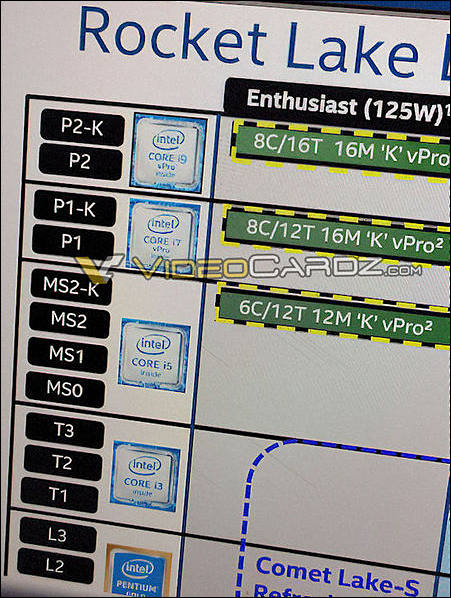

    Small leak of 11th gen CPUs.

    Most fun fact is 8 core max limit.

    Of course, it is still 14 nm chips, as 10nm does not work still.

    800 x 507 - 93K
  • 14 Replies sorted by

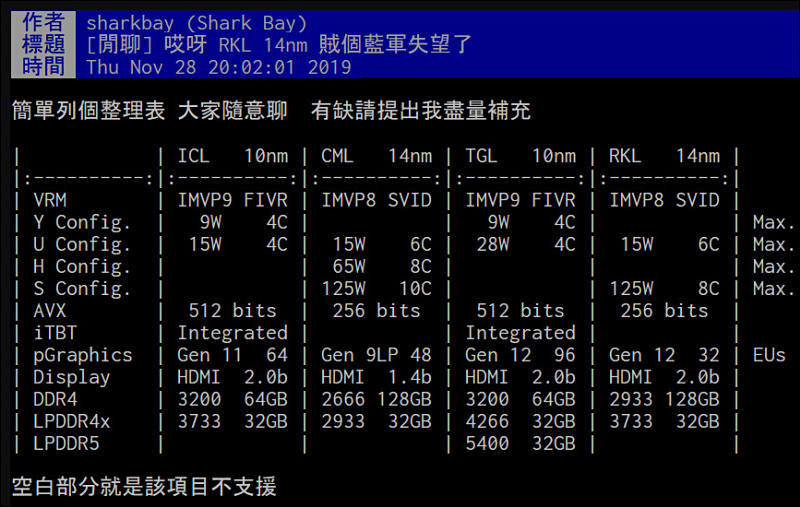

  • image

    636 x 559 - 43K
  • image

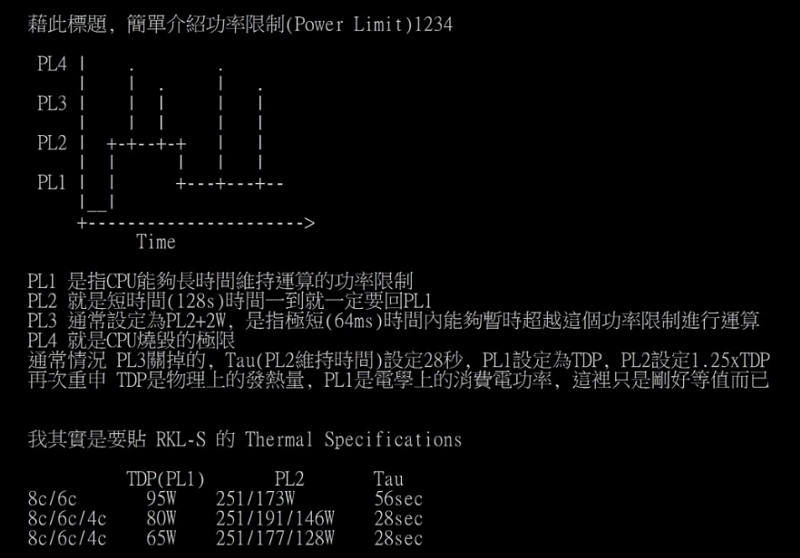

    There will be three kinds of SKUs for "Rocket Lake" based on TDP

    • 8-core parts with 95 W TDP rating
    • 8-core, 6-core, and 4-core parts with 80 W TDP
    • 8-core, 6-core, and 4-core parts with 65 W TDP variants.

    For the 95 W (PL1) parts, the power-levels PL2, and PL4 are reportedly set at 173 W and 251 W, respectively, and a 56-second Tau (a timing variable that dictates how long a processor can stick around at an elevated power-state before retreating to PL1). The 80 W TDP parts feature 146 W PL2, 191 W PL3, and 251 W PL4, but a lower Tau value of 28 seconds. For the 65 W parts, the PL2 is 128 W, PL3 is 177 W, and PL4 251 W, and the Tau value 28 seconds.

    Intel is stuck.

    800 x 558 - 51K
  • Strange 8 core / 12 threads models


    451 x 598 - 83K

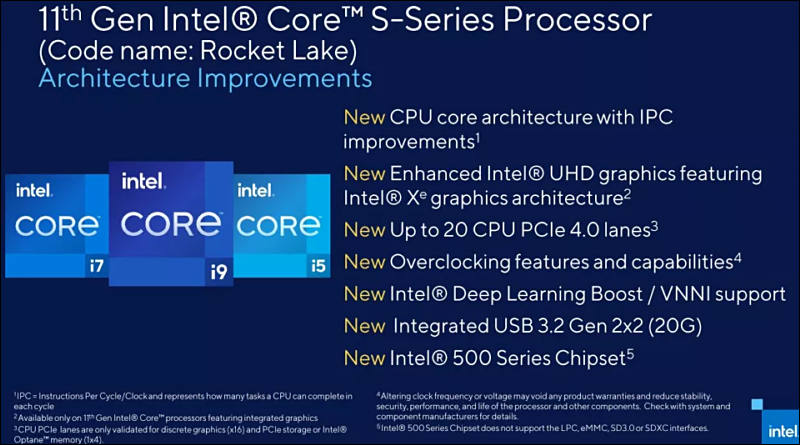

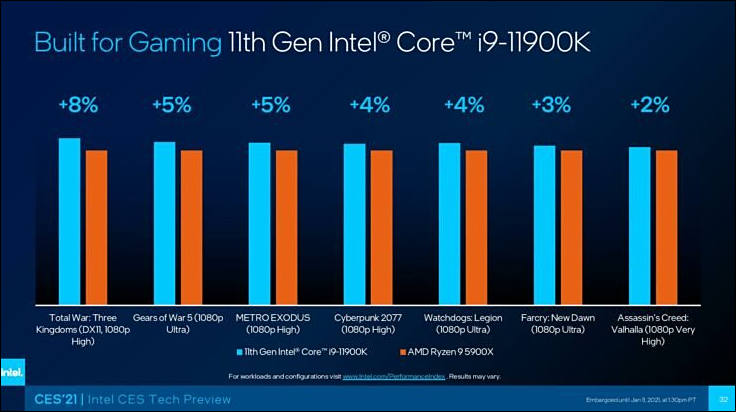

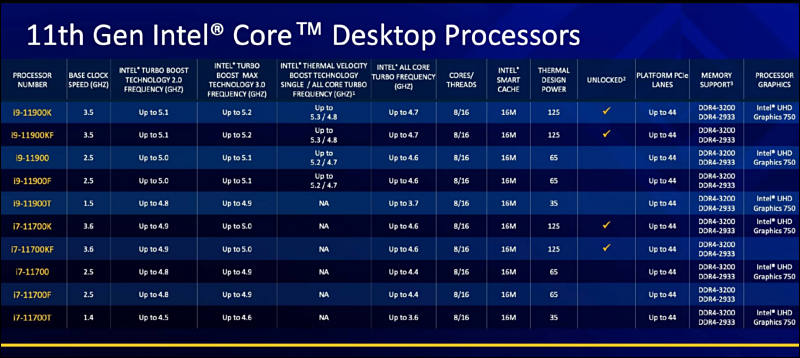

  • More info from Intel


    -   New Cypress Cove architecture featuring Ice Lake Core architecture and Tiger Lake Graphics architecture. -   Double-digit percentage IPC performance improvement -   Better gen-on-gen performance -   Up to 20 CPU Pcie 4.0 lanes  -   Intel UHD graphics featuring Intel Xe Graphics architecture -   Intel Quick Sync video, offering better video transcoding and hardware acceleration for the latest codecs -   New overclocking features for more flexible tuning performance -   Intel Deep Learning Boost and VNNI support


    800 x 445 - 72K
    800 x 444 - 73K
  • image

    800 x 138 - 32K
  • image

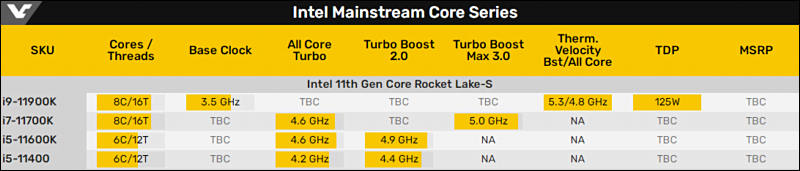

    11th Gen Core series could launch either end of February or early March.

    800 x 171 - 35K

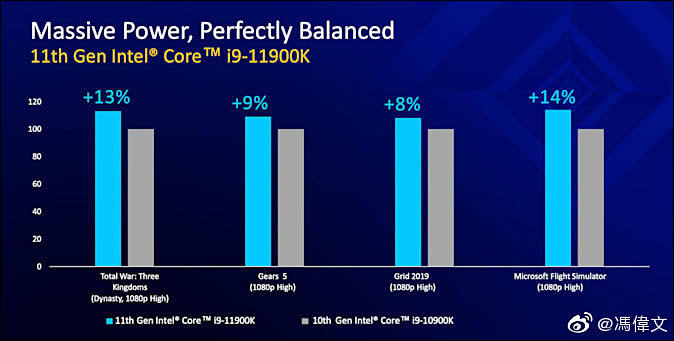

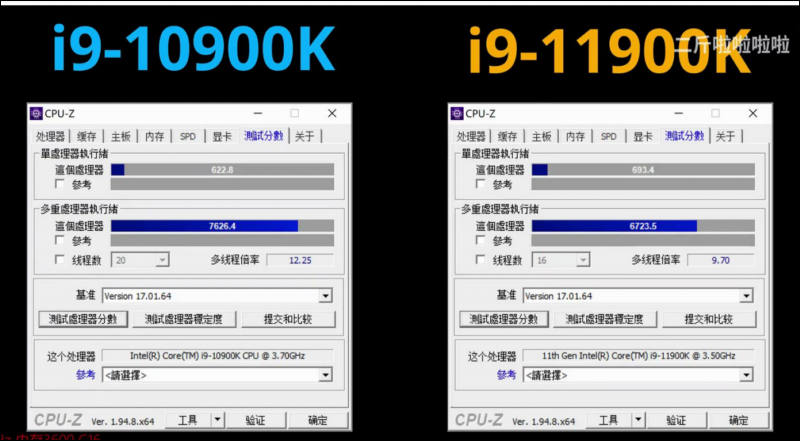

  • Core i9-11900K results


    736 x 412 - 51K
  • image

    800 x 441 - 62K

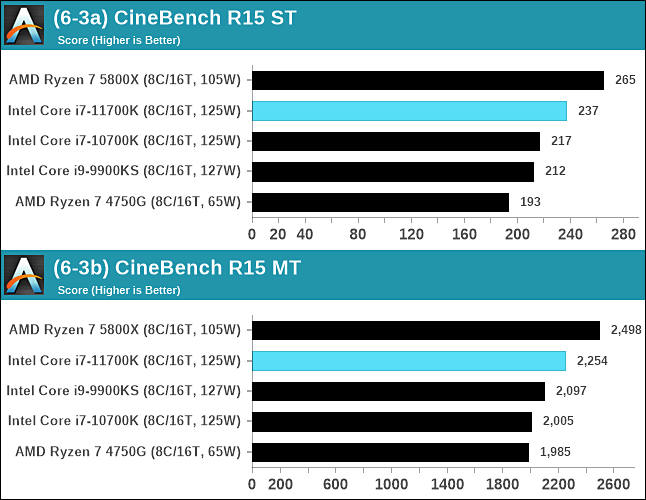

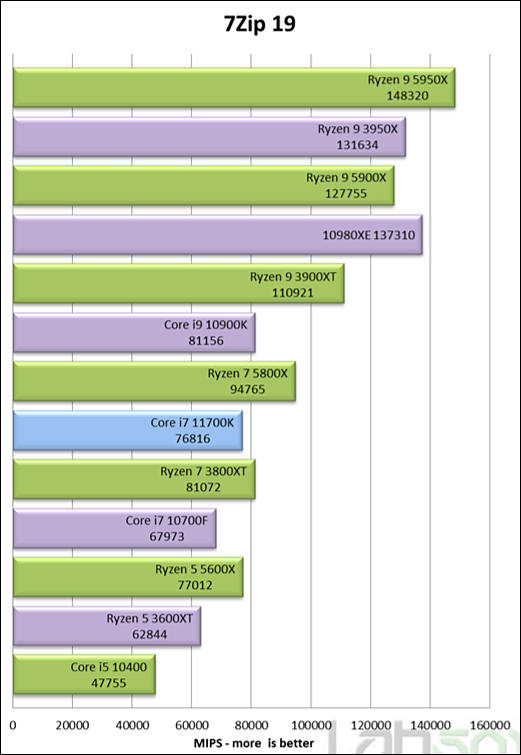

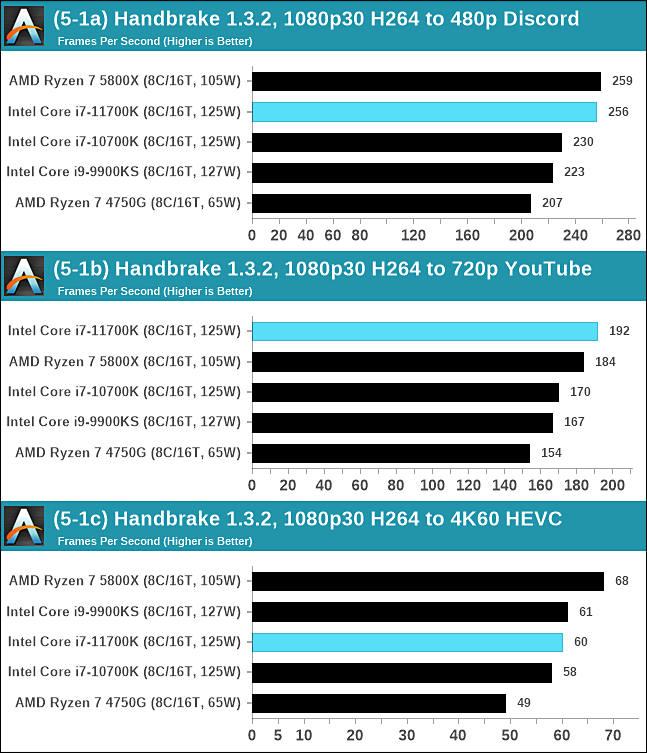

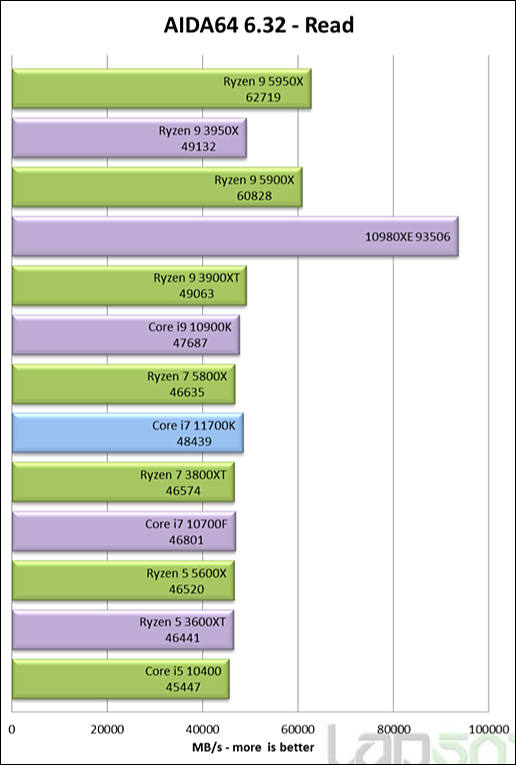

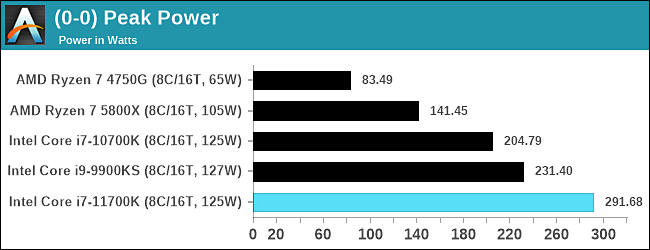

  • i7-11700K benchmarks



    521 x 755 - 51K
    516 x 765 - 50K
  • sa16618.jpg
    647 x 753 - 108K
    646 x 500 - 67K
    650 x 250 - 33K
  • image


    674 x 341 - 37K
    800 x 358 - 69K
  • image


    800 x 401 - 74K
    800 x 422 - 75K
  • Comparative chips


    811 x 891 - 228K
