EPYC Genoa and EPYC Milan AMD CPUs
  • Vitaliy_KiselevVitaliy_Kiselev


    Note that even EPYC Genoa (Zen 3 bases) will keep SP3 socket compatibility.

    So AMD abandoning TR4 socket is pure marketing bullshit decision, as sockets are physically same, except small wiring difference (plus SP3 has more pins used for additional memory channels and PCIe lines).


    Note that AMD revolution seems like go into a stop mode. As we'll see same cores, same SMT, same DDR4, just cache will be now shared.

    AMD states that they no longer aimed at any meaningful performance increase, but only (like Intel before) at reducing power consumption while keeping performance similar.

    EPYC Genoa will be first with some innovation. New socket, DDR5, PCIe 5.0, and most probably, famous 4 threads SMT.

    800 x 443 - 54K
    800 x 516 - 67K
  • 4 Replies sorted by
  • Vitaliy_KiselevVitaliy_Kiselev

    EPYC Genoa will get up to 96 Zen 4 based cores

    • With up to 12 dies in one CPU
    • Socket SP5, 6096 pins
    • 12 channel memory controlled with DDR5 SDRAM support
    • AVX-512 support

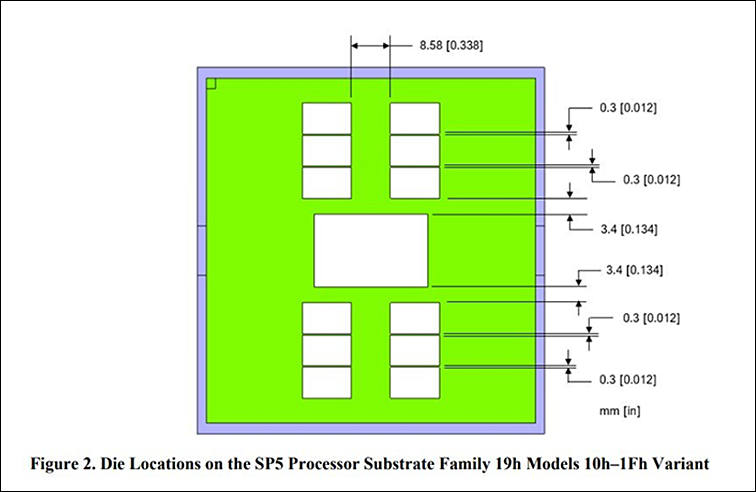

    • Zen 4 die area will be 72mm2

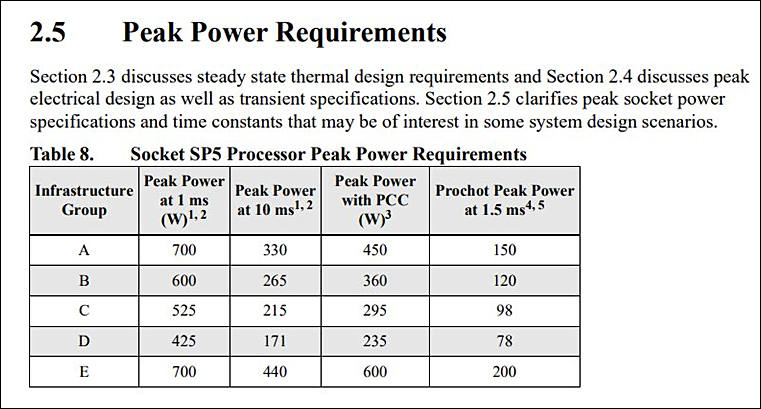

    • Up to 700 watts power consumption
    • 2022 release




    756 x 492 - 43K
    706 x 570 - 50K
    761 x 409 - 64K
  • Vitaliy_KiselevVitaliy_Kiselev

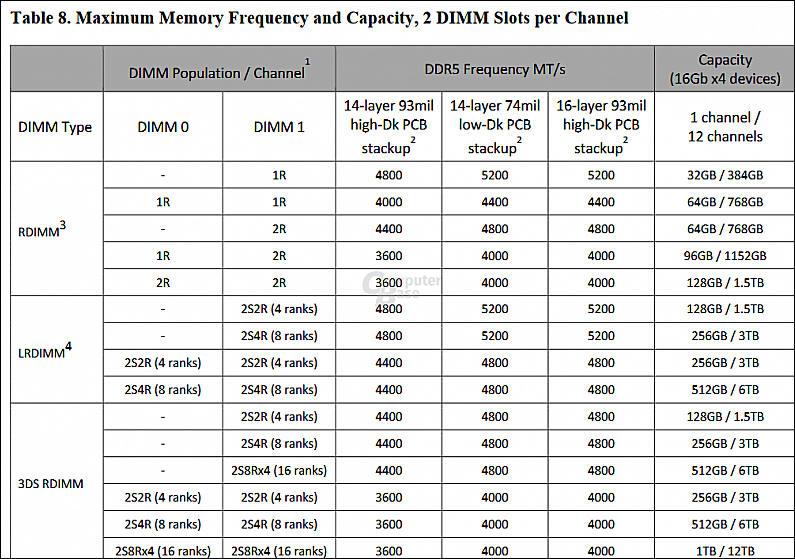

    ComputerBase has shared a table with possible configurations of memory modules. From it, in particular, it follows that the new processors will support DDR5-5200, and not only in the form of peer-to-peer RDIMMs, but also four- or eight-rank LRDIMMs. However, in the latter case, when using massive 128 GB modules, the maximum memory per socket will not exceed 1.5 TB.

    800 x 569 - 75K
    795 x 559 - 125K
  • Vitaliy_KiselevVitaliy_Kiselev

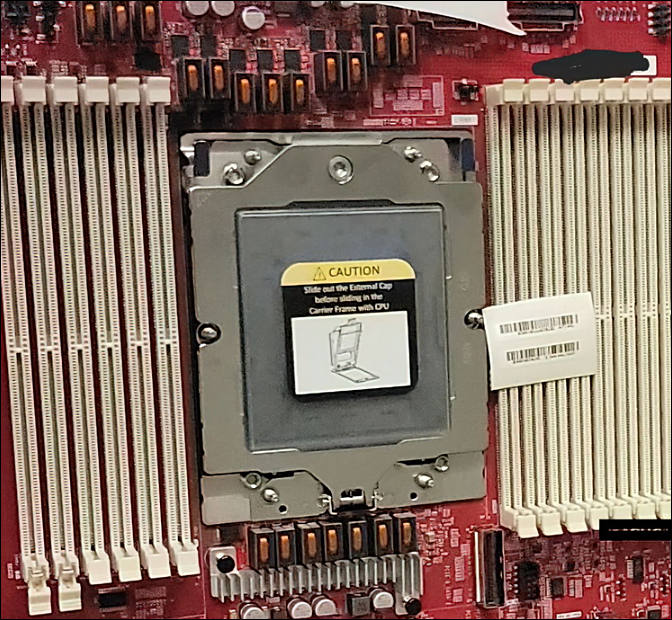

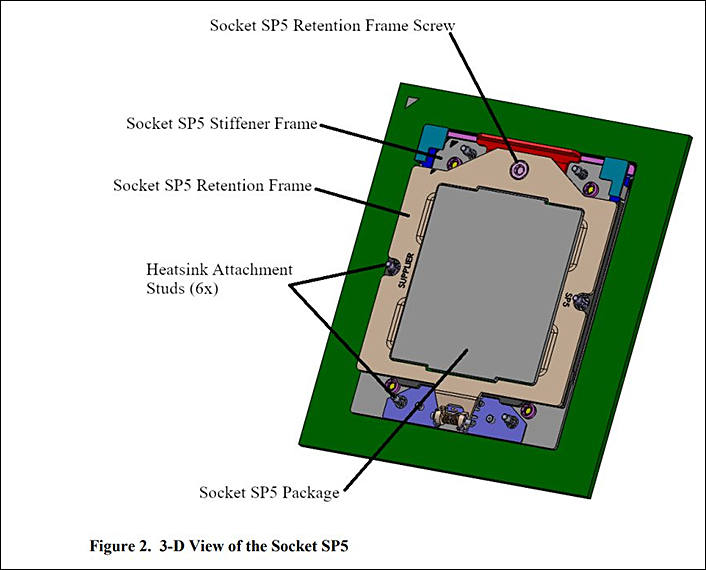

    AMD Socket SP5 Photo


    The dimensions of Socket SP5 seem to be 75 × 72 mm. It is really very big. The connector will have 6096 LGA pads. For comparison, desktop socket Socket AM4 measures 40 × 40 mm. The current size for Intel Xeon server processors - LGA 4189 - has 4189 options, respectively, with dimensions of 77.6 × 56.6 mm.

    672 x 620 - 113K
  • Vitaliy_KiselevVitaliy_Kiselev

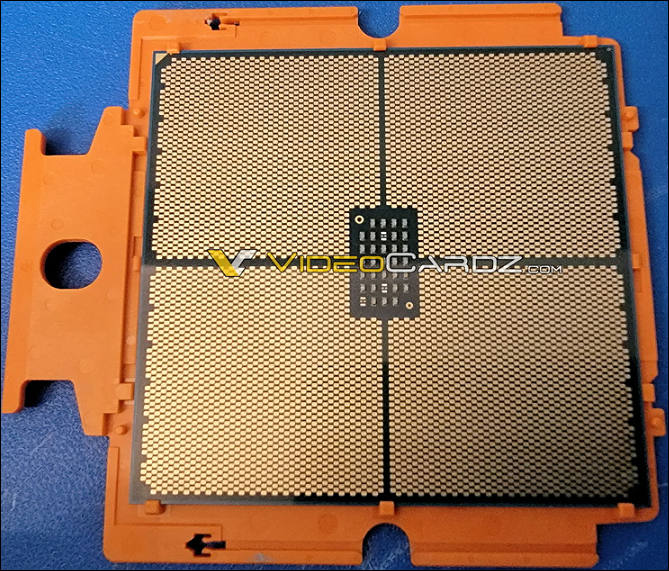

    EPYC Genoa Sample Photos



    668 x 599 - 56K
    669 x 571 - 123K
