Ikan LCX21 Lyra 1x 2 Soft Panel RGBW Light
  • 3 Replies sorted by
  • Specs

    • 97 CRI Chip LEDs paired with 1/2 stop soft diffusion panel
    • Full RGB color, Saturation, and HSI control
    • Variable CCT: 2800K-10000K
    • Beam Angle of Soft panel 110 degrees
    • A Clean single shadow without the artifacts
    • 8-bit & 16-bit DMX
    • Hue Shift: +green/-magenta 0-100%
    • Baby 5/8 inch/Junior 1-1/8 Combo Pin adapter with right angle receiver hole
    • Quick set disk locking system for positioning the light
    • Color correction filter gels
    • Special lighting effects

    https://ikancorp.com/shop/lighting/lyra-rgbw-1-x-2-soft-panel-digital-color-light/

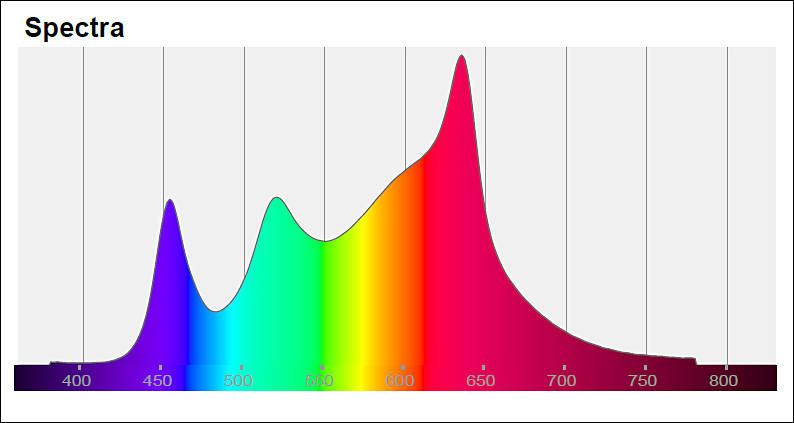

  • Ikan LCX21 Lyra 1x 2 Soft Panel (Daylight setting), Measurement using CV600, Russian Lab processing

    We cover spectrum, color temperature, and all modern color quality standards, including latest 2016 and 2017 years ones.

    Never select light based on just CRI number.

    Focus on TM30 and CIE 224 and look for color distortion and Rf values.

    Ikan LCX21 Lyra 1x 2 Soft Panel is specific light, as it uses primary RGB leds for white light, is nod bad light, but light quality is not best for videos, especially compared to good modern adjustable temperature white led light.

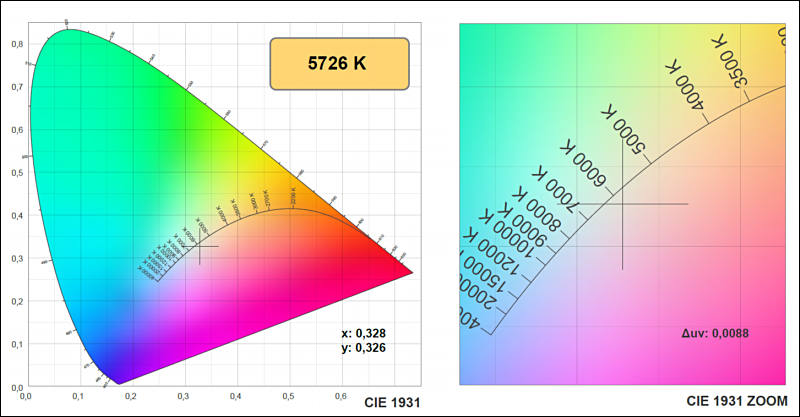

    Color temperature

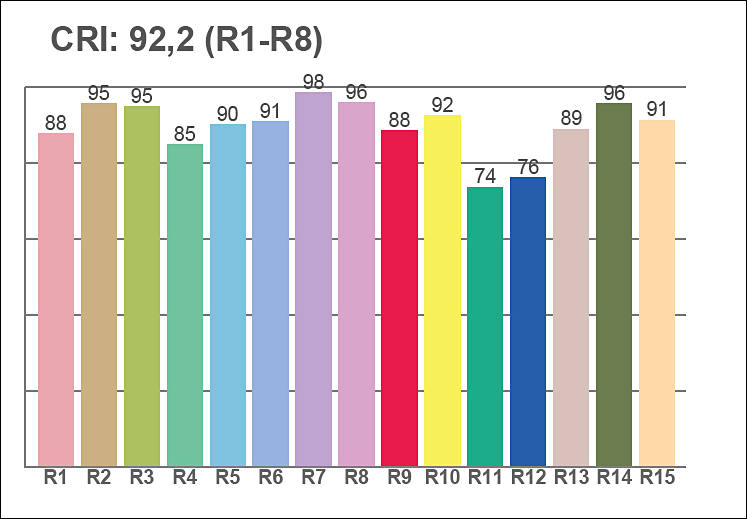

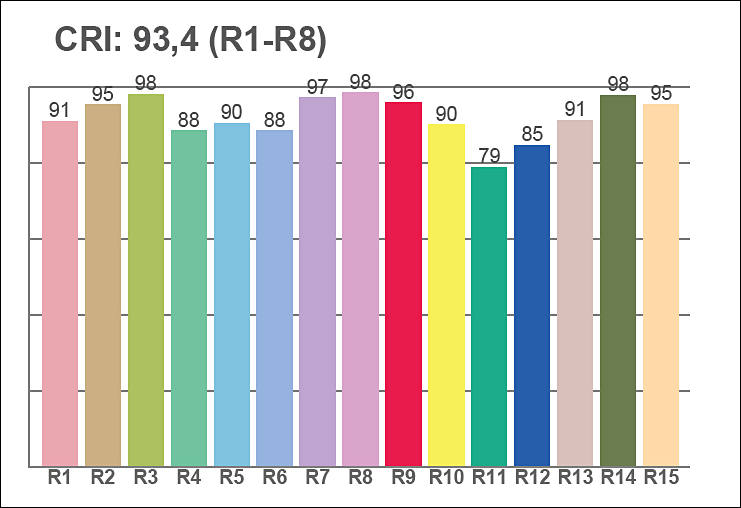

    CRI color quality

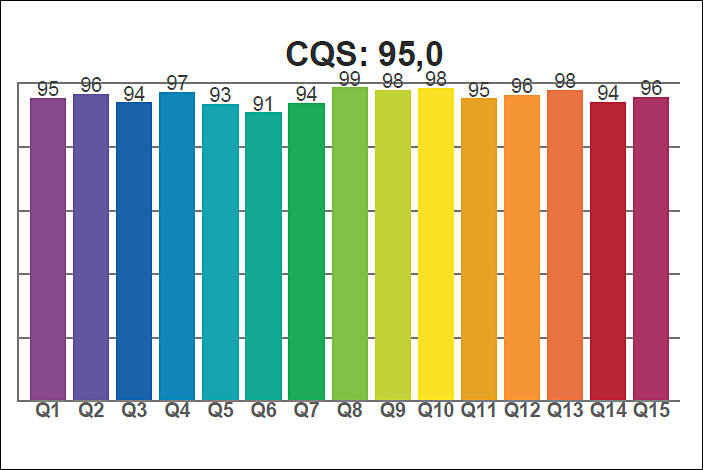

    CQS color quality


    TLCI 2012

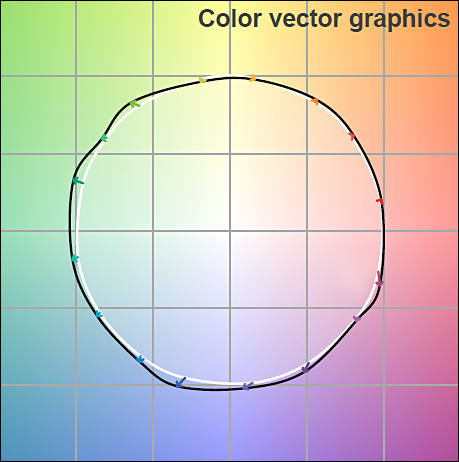

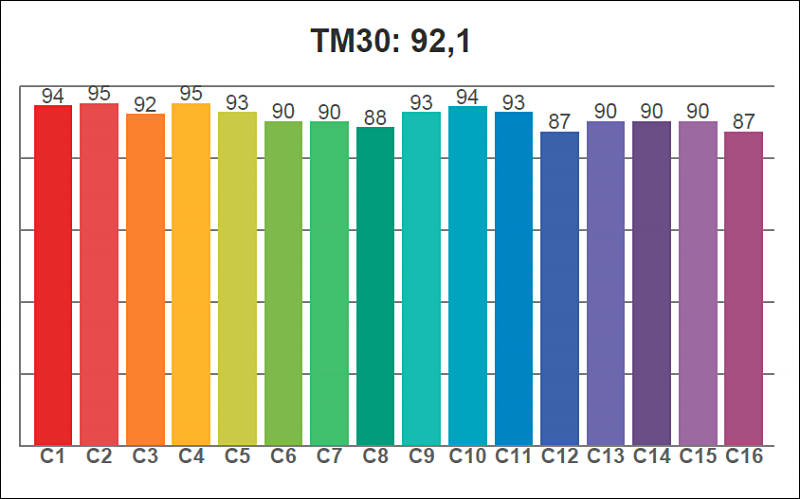

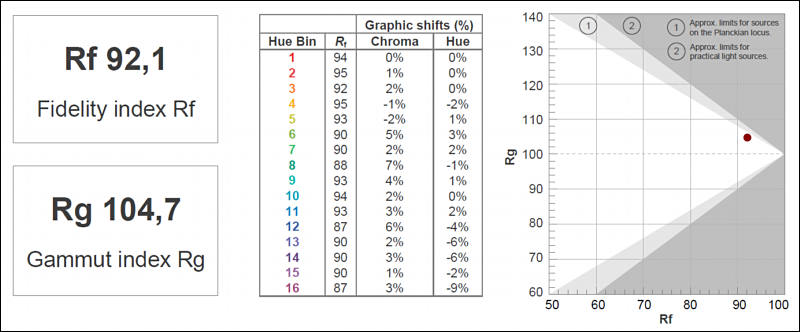

    TM30 color quality

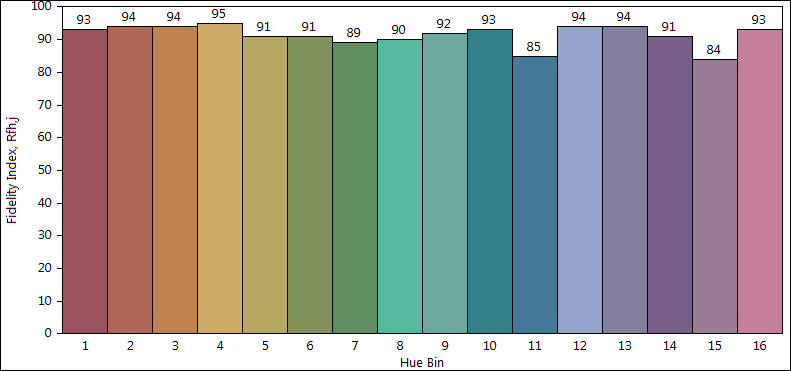

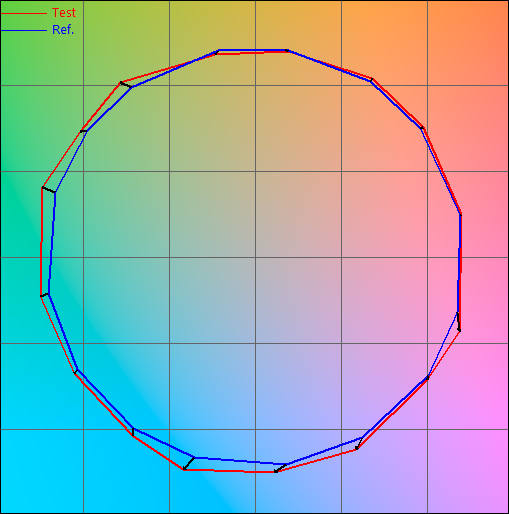

    TM30 details

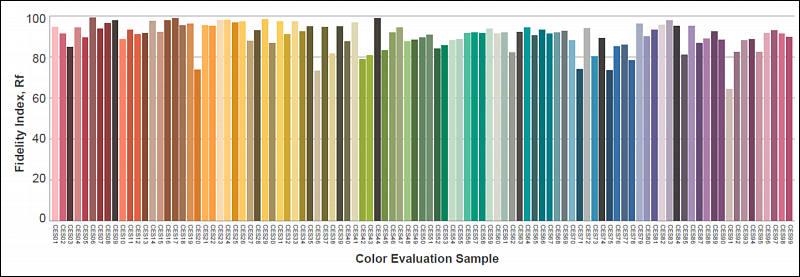

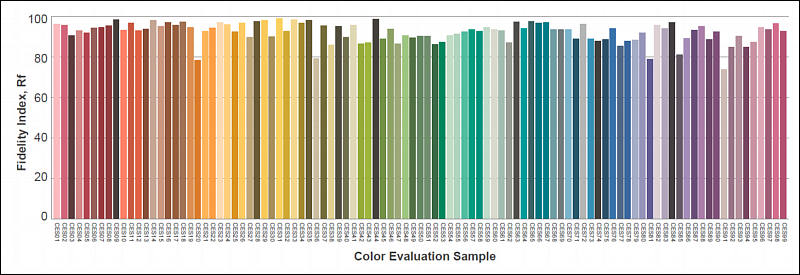

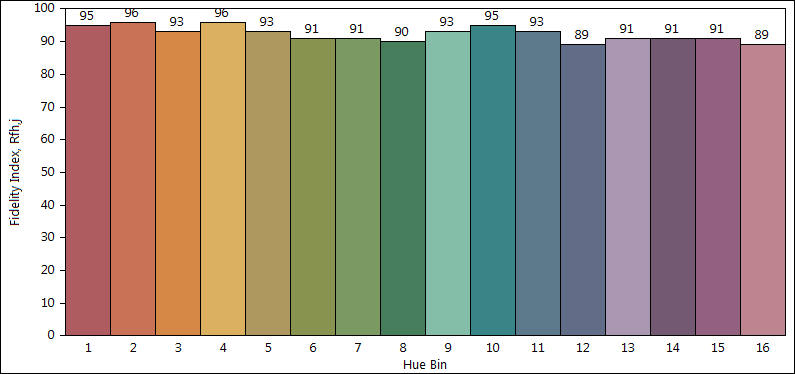

    All TM30 color samples Rf values


    CIE 224 2017



    800 x 422 - 32K
    800 x 417 - 52K
    747 x 519 - 55K
    717 x 433 - 54K
    800 x 506 - 63K
    800 x 341 - 47K
    458 x 456 - 31K
    800 x 277 - 67K
    800 x 457 - 50K
    510 x 506 - 46K
    791 x 371 - 41K

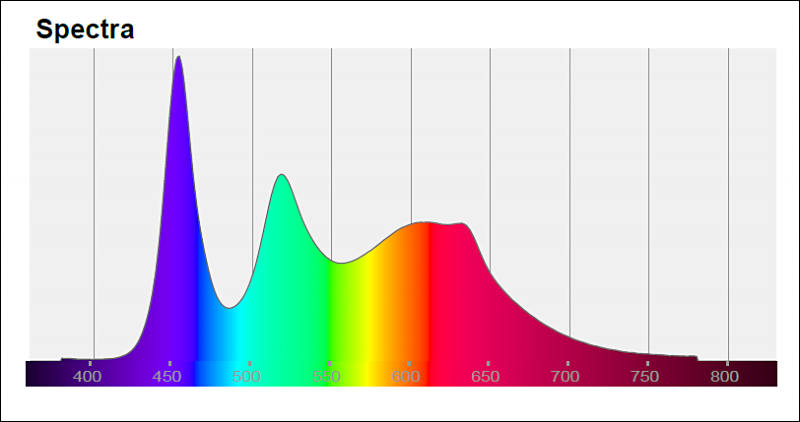

  • Ikan LCX21 Lyra 1x 2 Soft Panel (Tungsten setting), Measurement using CV600, Russian Lab processing

    We cover spectrum, color temperature, and all modern color quality standards, including latest 2016 and 2017 years ones.

    Never select light based on just CRI number.

    Focus on TM30 and CIE 224 and look for color distortion and Rf values.

    Ikan LCX21 Lyra 1x 2 Soft Panel is specific light, as it uses primary RGB leds for white light, is nod bad light, but light quality is not best for videos, especially compared to good modern adjustable temperature white led light.

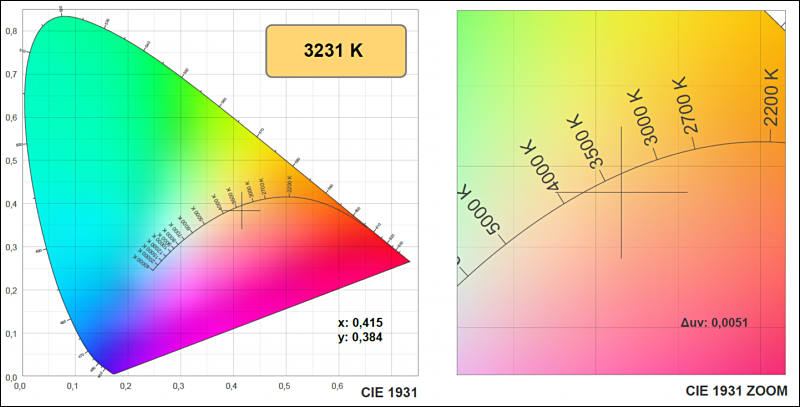

    Color temperature


    CRI color quality

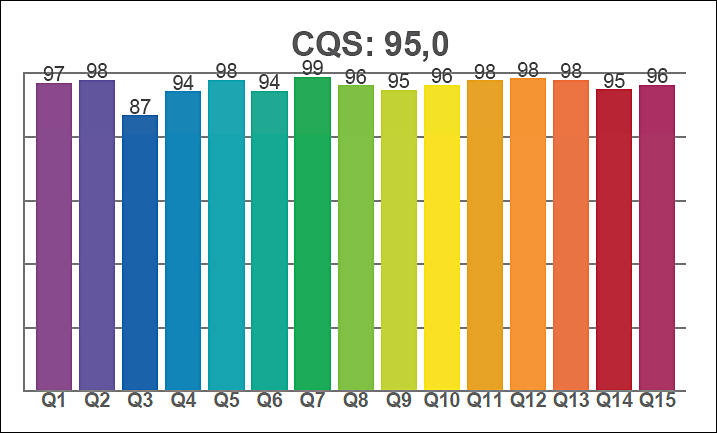

    CQS color quality

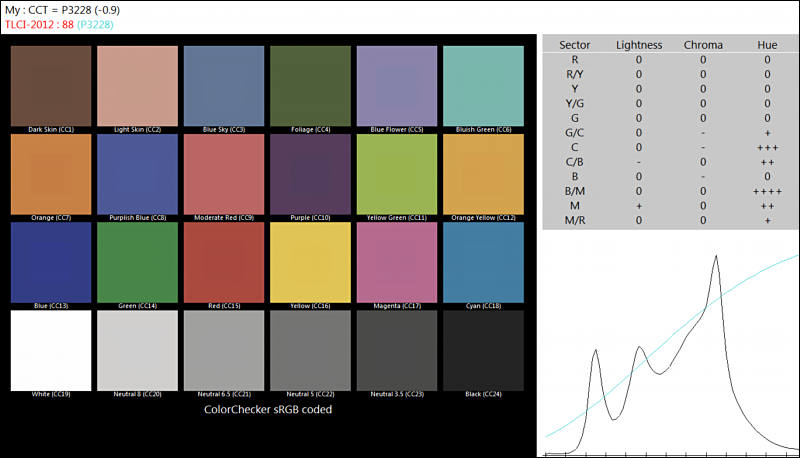

    TLCI 2012

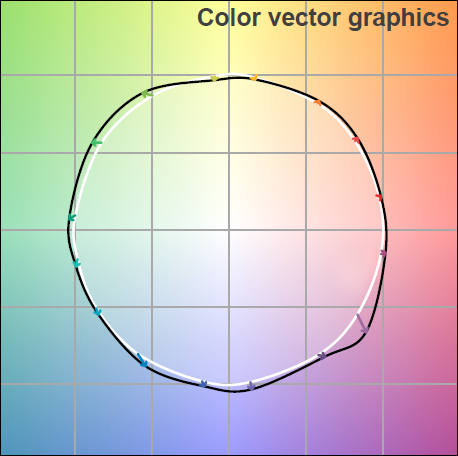

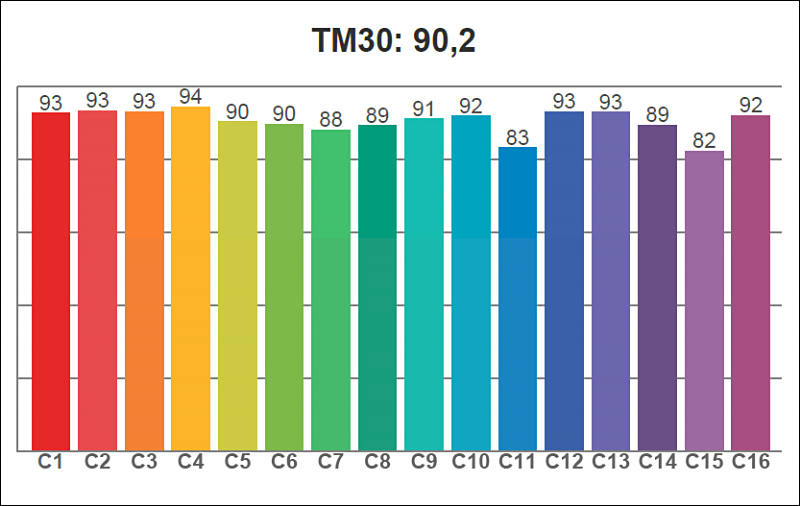

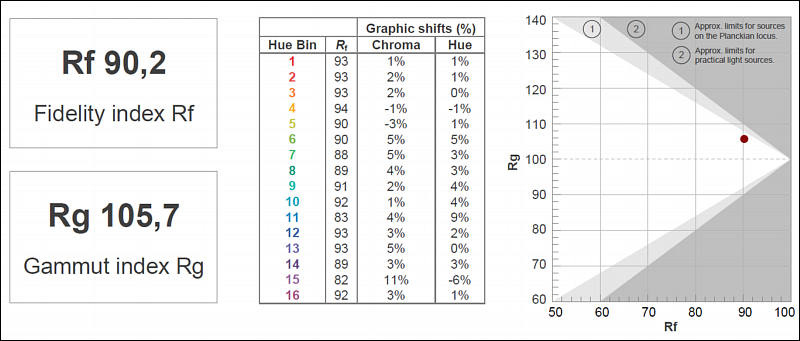

    TM30 color quality


    TM30 details



    All TM30 color samples Rf values


    CIE 224 2017



    794 x 423 - 35K
    800 x 407 - 51K
    741 x 508 - 55K
    703 x 470 - 57K
    800 x 499 - 62K
    800 x 332 - 45K
    459 x 462 - 32K
    800 x 275 - 67K
    800 x 458 - 48K
    509 x 514 - 45K
    795 x 374 - 41K
