DJI Osmo Action

• Sony IMX377 sensor (Hero7 Black has IMX277 with HDOL-HDR)
• Ambarella H2 SOC
• Lens 145 degree FOV
• 4K/60

The only thing this adds compared to the Hero7 Black seems to be the front facing selfie screen.

While the Ambarella H2 SOC has 3D based image stabilization it's unlikely to compete fully with GoPro HyperSmooth.

• GoPro, DJI & Insta360 are too expensive
• All other budget action camera out there seems exactly the same HW & SW with (sometimes) different housing and terrible video compartment.
• It seems impossible to find a honest review nor a review of the photographic capabilities. I get the impression that many of them don't even have the 12-megapixel sensor they boast of having.
• Discontinued YI cameras seemed to be the only really apart from the other.

Based on the above, could you suggest me some budget action camera?

Thank you in advance

• IMX377 sensor
• Ambarella H2 SOC, 14nm video processing/encoding
• 7 layers of glass lens, 155° FOV
• 2.19” touch screen, 640*360 screen
• 4K 60, 50, 30, 25fps, 2.7K (16:9) 60, 50, 30, 25fps
• 4000x3000 30, 25p, 1080P 120, 100, 60, 50, 30, 25p
• up to 120Mbit modes
• Voice command technology
• RAW shooting for stills
• Electronic Image Stabilization (EIS) for 4K 30p
• Live streaming
• Compatible to all YI 4K acessories
• USB 3.0 Type-C port (up to 40Mbps speed)
• Available at https://www.amazon.com/YI-Action-Camera-60fps-Waterproof/dp/B01CW4B2P8/

Full specs https://www.yitechnology.com/actioncamera/specs/id/11

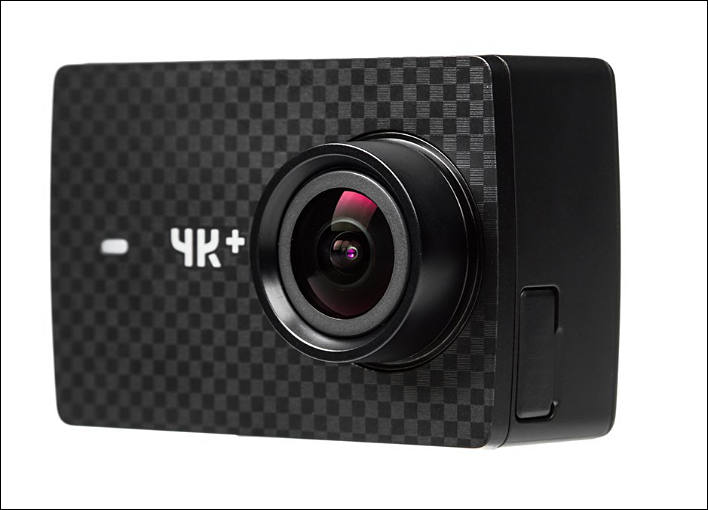

Official!

YI Technology, the leading, international provider of advanced, intelligent imaging technologies, today announced plans to unveil the YI 4K+ at CES 2017, the first action camera to capture 4K photos and videos at 60 frames per second (fps). The company also plans to fly the YI Erida drone, the world’s fastest tricopter, for the first time live in the U.S.

“2016 has been a whirlwind of product launches including several new action and home security cameras, the YI Erida drone, our first mirrorless camera the YI M1, as well as an exciting partnership with Google to develop a virtual reality camera rig,” said Sean Da, CEO of YI Technology. “CES 2017 is an important milestone for us as we look to demonstrate our full product line and reveal novelty solutions. As a challenger brand in the changing imaging technology market, we are constantly looking for ways to push the boundaries and set new standards for the global industry.”

Based on the award winning YI 4K, the YI 4K+ is the third action camera in YI’s successful line of high quality and affordable solutions. The faster frame rate of 60fps is double that of competitor’s products and allows for more realistic, high quality video content.

YI will demonstrate its full line of connected imaging technology solutions, including the YI Erida drone, YI 4K+ Action Camera, home security cameras, dash camera, and the professional grade mirrorless camera, the YI M1, at two different locations during CES 2017:

Pepcom’s Digital Experience!: Wednesday, January 4, 7pm – 10:30pm PT, The Mirage Hotel The Sands, Tech West: January 5-8, Booth #46324

To schedule a one-on-one briefing with an executive from YI Technology, please contact: YITechnology@blancandotus.com

• 7 layers glass lens with F2.8 aperture optics
• Sony IMX 377 12Mp sensor
• Ambarella A9SE75 SOC
• 6 axis anti shake
• 4kp30, 1080p120, 720p240
• 640x360 touch screen covered by Gorilla Glass
• 1400Mah battery
• $199 in china
• Available in Amazon - https://www.amazon.com/YI-Action-Camera-Night-Black/dp/B01FU9ZIMU/

Specs

• Sony BOSS stabilizer (like gimbal)
• BIONZ X processor
• Stereo mic
• Splash proof body
• 3 angle adjustment
• FDR-X3000R may be mounted on a bicycle or car and held in the hand using a range of accessories
• Comes supplied with Live-View Remote
• Comes with underwater housing
• Shoots 4K video at 100Mbit, 1080p100/p120 at 100/50Mbit, 8.3MP interval shooting
• Tripod socket
• HDMI and micro USB connectors, microphone jack
• Body available for $399 at https://www.bhphotovideo.com/c/product/1278151-REG/sony_fdr_x3000_this_is_another_test.html
• With remote for $549 at https://www.bhphotovideo.com/c/product/1278152-REG/sony_fdr_x3000vr_this_is_a_test.html

http://www.sony.jp/actioncam/products/FDR-X3000/

Hopefully, the YouTube compression won't be too bad. The original file looks great!

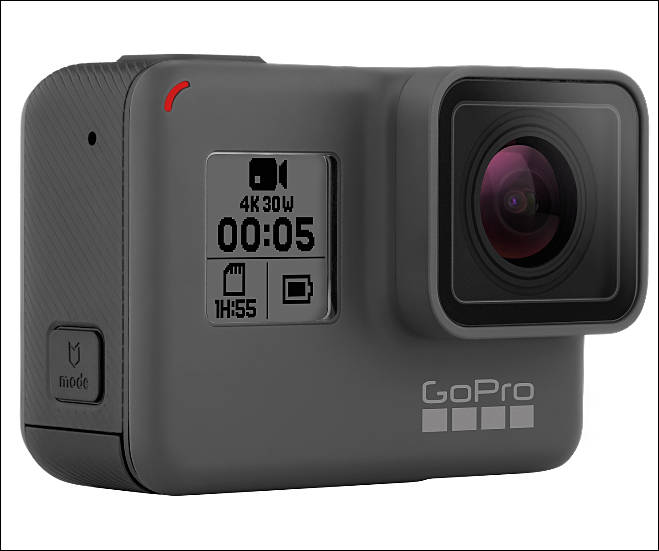

Black Specifications

• 4K 30fps, 2.7k 60fps, 1080p120
• 6 elements, aspherical lens
• electronic stabilization only
• 62mm x 44.6mm x 33.7mm
• Battery - 1220mAh, 3.85V
• 118g with battery, 90g without
• USB-C port, HDMI output port
• MicroSD card usage, UHS-I compatible
• 802.11ac support for Wi-Fi
• Bluetooth 4.1 LE
• GPS
• Cloud connected
• Internal mono mike
• $399, 429 EUR Available at October 2nd, http://shop.gopro.com/Marketing/hero5/hero5-black/CHDHX-501-master.html

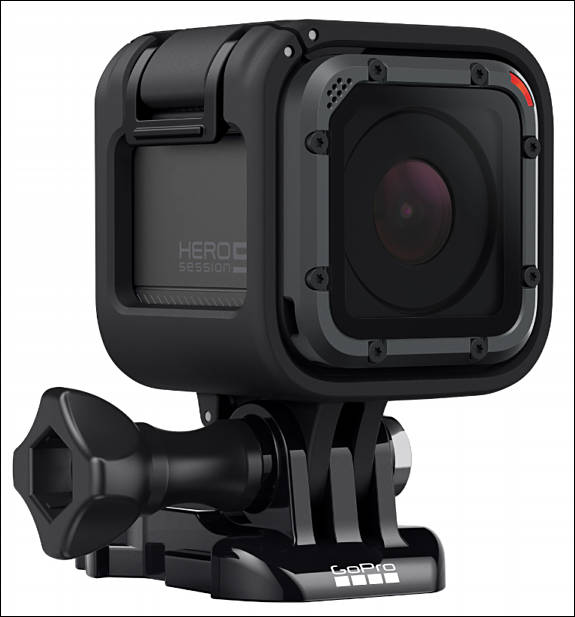

Session specifications

• 4K 30fps video
• ProTune video mode
• Waterproof
• Voice commands support
• Cloud connected
• $299, available in October at http://shop.gopro.com/Marketing/hero5/hero5-session/CHDHS-501-master.html

• 4K30 / 2.7K50 / 1080p120 fps
• 12MP / 30 fps Burst
• Control. View. Share.
• Waterproof to 131’ (40m)

• $499

• Preorder - http://www.bhphotovideo.com/c/product/1078001-REG/gopro_chdhx_401_hero4_black_edition_adventure.html

• Preorder - http://www.bhphotovideo.com/c/product/1078003-REG/gopro_chdbx_401_hero4_black_edition_music.html
• Info - http://shop.gopro.com/cameras/hero4-black/CHDHX-401.html

GoPro HERO4 SIlver

Old HD3+ now becomes the HD4 Hero Silver with a few additions.

• 1080p60 / 720p120 fps
• 12MP / 30 fps Burst
• Control. View. Share.

• Waterproof to 131’ (40m)

• Preorder - http://www.bhphotovideo.com/c/product/1078007-REG/gopro_chdhy_401_hero4_silver_edition_adventure.html

• Preorder - http://www.bhphotovideo.com/c/product/1078009-REG/gopro_chdby_401_hero4_silver_edition_music.html
• Info -http://shop.gopro.com/cameras/hero4-silver-surf/CHDSY-401.html

• NEW - integrated Touch LCD screen on the rear.
• NEW - Battery door on bottom of the GoPro
• NEW - Settings button in place of Wifi button the side of the camera
• NEW - Front LCD now has record and Wifi lights.
• Same physical size
• Has rear Bacpac port
• LCD sleep ( save battery)
• 4k-30
• 2.7k-60
• 12MP Stills - with own settings menu and NightLapse has intervals from 15s to 60m
• Bluetooth capabilities
• GPS, Environmental data (temperature, etc)
• Internet streaming (secondary GOPs)
• Many other features unconfirmed to be announced - Available 15th Oct regional based.

YouTube: www.youtube.com/petroltheseries

1080p at 50fps Bit Rate = 28mbps 1080p at 25fps Bit Rate = 16mbps

You intercut the 50p (25p) (Close range and POV) with Multicam DSLR footage of 24p (Medium and Wide). You Drop the Footage into a 24p timeline with a 24mbps Bit Rate and have the option of either dropping frames or bending frames.

1- How much information is lost conforming 50p to 24p?

2- Will the information lost from the 50p footage lead to the 25p (16mbps) footage having a higher Bit Rate in the 24p timeline?

3- Is it better to drop the 50p into a 25p time line, render at 25p, and then drop the new file into the 24p timeline?

4- Is it better to just forgo the 50p and use the 25p (16 Mbps)?

Specs:

• 160 degrees anti fog wide lens
• 720p30, 720p60, 720p120
• 1080p60, 1080p30

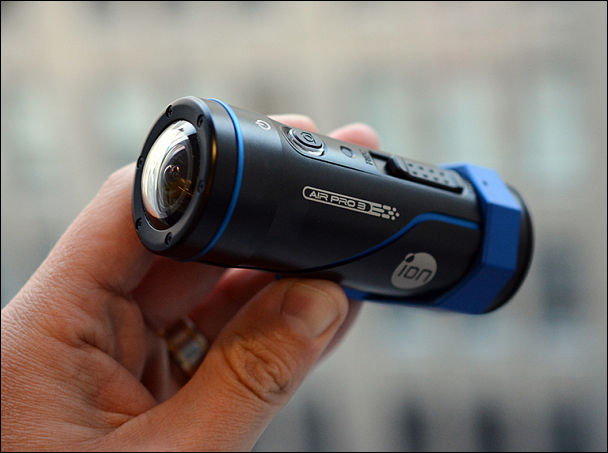

Designed for professionals and consumers alike, the aerodynamic iON camera line features a number of significant industry firsts, including Wi-Fi connectivity and free cloud storage. The unique iON PODZ™ system—thin, circular discs that attach to the back of the basic camera, adding virtually no weight or volume—extends the capabilities of the iON camera lines. The Wi-Fi capabilities of the iON Wi-Fi PODZ work with the iON app for iOS and Android devices, allowing users to control camera functions and settings, preview the scene before shooting, instantly replay recordings, and immediately upload footage to Facebook, YouTube and other social networks.

The new Air Pro 3 Wi-Fi records HD video up to 60 frames per second at 1080p, with dual streaming to enable users to simultaneously “shoot and share” their recordings. A new, 12-megapixel image sensor offers up to 4000x3000-pixel still-image resolution with superior light sensitivity and wider dynamic range, even in challenging low-light situations. The camera’s “anti-shake” feature minimizes the effects of vibration for crisper images, and its built-in microphone is equipped with noise reduction to minimize the effects of wind and other distracting sounds on the audio track.

Additional new features of the Air Pro 3 Wi-Fi include extra-long, 2.5+-hour battery life and a custom-made, fog-free lens with improved light transmission for top-quality videos and stills, and a 160-degree angle of view that can be customized for tighter 140- or 150-degree angles using the iON iOS or Android app. While retaining the sleek, cylindrical shape of the previous Air Pro models, the camera casing is redesigned and boasts improved underwater capabilities up to 49 feet, with no outer housing required. The addition of a pro-grade metal ¼” tripod screw mount assures stability when used with conventional mounting systems.

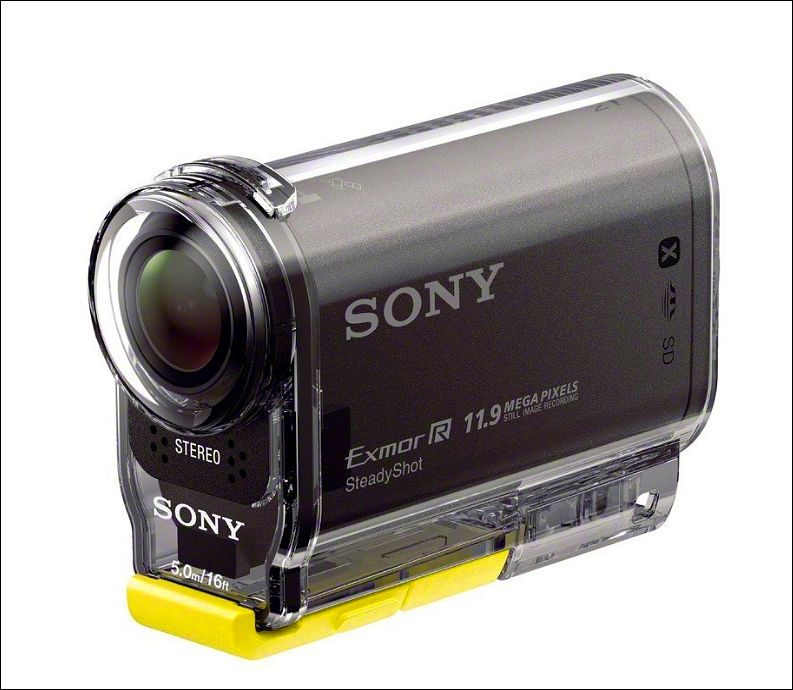

Specs:

• SteadyShot image stabilization
• Wi-Fi and NFC for remote control and viewing via smartphone
• Ruggedized, waterproof housing
• 6 video modes including 1080/60p HD and 4x slow motion
• Micro SD/SDHC card slot
• Price - below $299

The Sony® HDR-AS30V ships with a ruggedized, waterproof housing with universal tripod mount that is built to handle extreme environments, allowing you to concentrate on safety and composition while capturing Full HD videos. Within the housing, the camera is waterproof down to 197 feet.

Available at:

• http://www.amazon.com/Sony-Definition-Action-Camera-HDR-AS30V/dp/B00EVIBN8U/

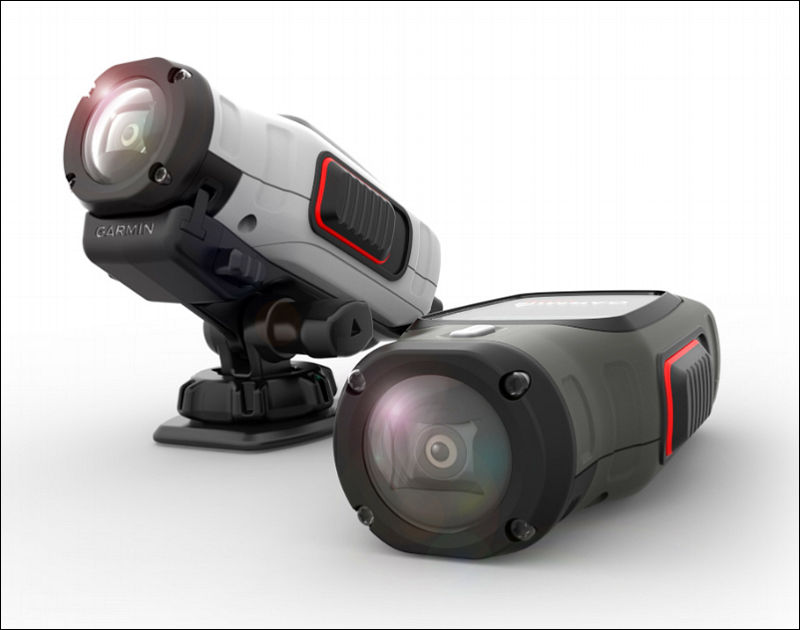

Garmin International Inc., the global leader in satellite navigation, today announced VIRB, its first true HD 1080p action camera series. From action sports to family vacations, VIRB combines a unique feature set that makes it easier than ever to capture life’s memories. VIRB features a rugged and waterproof (IPX-7) housing, so there is no extra case necessary to withstand the elements. The unique 1.4-inch Chroma™ color display makes setup and playback a breeze and uses minimal power so VIRB can record up to three hours of true HD (1080p) video on one charge. On-board video enhancement features such as digital image stabilization and lens distortion correction ensure that footage recorded with VIRB will look great, even before editing. VIRB can capture high quality still photos while the video camera is recording. VIRB Elite incorporates all these features, plus has built-in WiFi, data sensors and a high-sensitivity GPS. Both VIRB and VIRB Elite feature ANT+™ connectivity for remote control functionality with other Garmin products, and for data transfer with other fitness sensors.

VIRB has a sleek, aerodynamic design that makes it fun and simple to record HD video- just move the slider forward to record. The rechargeable lithium-ion battery can record up to three hours of HD (1080p) video with one charge, and can be easily changed on the go. The WideVü lens captures all the action, and the high-resolution Chroma display makes it easy to change menu settings, set-up and playback shots, but has reflective technology so it doesn’t drain the battery. The 1.4-inch screen uses ambient light (instead of a battery-draining backlight) to illuminate the screen and make it easy to see in bright sunlight.

VIRB is durable enough to capture even the most extreme activities right out of the box. With the rugged external housing, VIRB has an IPX-7 waterproof rating (can withstand accidental immersion in one meter of water for up to 30 minutes).

VIRB can even take stills while recording video. VIRB also has a micro HDMI output for convenient video playback and a microSD slot that can hold up to 64GB card (64GB microSD card can hold over seven hours of 1080p video).

VIRB Elite incorporates all these features, as well as high-sensitivity GPS, accelerometer, altimeter and WiFi. WiFi capabilities allow users to connect to the free mobile applications for iPhone and Android. VIRB Elite comes equipped with specific activity profiles so users can track location, speed, elevation, heart rate (monitor sold separately) and more while recording. This data can be reviewed right on the device, or can be embedded into their video during the editing process.

Additionally, in Ski Mode, the VIRB Elite is able to recognize the difference between going down the mountain and going up the ski lift. In this setting, VIRB Elite automatically turns on and starts recording when going down the mountain, and then goes into standby mode once on the ski lift. This mode saves battery and memory space, and keeps the user from forgetting to record when going down the mountain. This allows VIRB Elite to record all the action while users focus on their activity.

VIRB allows many current Garmin customers to take advantage of the Garmin ecosystem. In addition to the optional accessory remote (available Q1 2014), the Edge® 810, fēnix™, quatix™, Oregon® 600 series, and many more can control VIRB allowing users to start and stop recording and take stills right on the device through ANT+ wireless communication (for the full list of device compatibility, visit garmin.com/virb). Also through ANT+, users are able to control several connected VIRB devices. Just move the slider forward to record on the master device, and all the other connected VIRB devices will record as well. VIRB Elite is compatible with other sensors with ANT+ connectivity such as the heart rate monitor, cadence sensor and tempe™ temperature sensor. This data can then be embedded into the video during the editing process, or viewed on the display of VIRB Elite.

To complement VIRB Elite, Garmin is launching a mobile application for preview, playback and remote functionality, along with a free desktop software application to edit and upload VIRB and VIRB Elite videos. With this software, users can easily edit their footage and embed sensor data in the video, then share with family and friends or upload to social media sites such as YouTube, Facebook and Instagram.

VIRB and VIRB Elite will be widely available for purchase in September 2013. VIRB MRP is $299.99, and VIRB Elite MRP is $399.99. VIRB is the latest solution from Garmin’s outdoor segment, which focuses on developing technologies and innovations to enhance users’ outdoor experiences. Whether it’s golfing, hiking, hunting or geocaching, Garmin outdoor devices are becoming essential tools for outdoor enthusiasts of all levels. For more information about Garmin’s other outdoor products and services, go to garmin.com/outdoors, garmin.blogs.com and twitter.com/garmin.

Specs

• 8Mp backside-illuminated CMOS sensor
• 1080p60 and 720p120 video modes
• wider-angle prime lens, 137d FOV, F2.4 aperture

You can preorder them:

• Sony HDR-AS10 Action Video Camera - http://www.amazon.com/Sony-HDR-AS10-Action-Video-Camera/dp/B0090EC5NC/
• Sony HDR-AS15 Action Video Camera - http://www.amazon.com/Sony-HDR-AS15-Action-Video-Camera/dp/B0090EC5MS/
• Sony HDR-AS15 Wifi Action Video Camera (Black) Essentials Bundle - http://www.amazon.com/Sony-HDR-AS15-Action-Essentials-Battery/dp/B0094719MS/

It was all shot at 720p50, using a Voigtlander 25mm 0.95, Canon FD 50mm 1.4 and 85mm 1.8.

As a cautionary tale, I attempted to shoot with the Flowmotion v1.11 patch, but found when getting the footage in it was averaging a very low bitrate of between 14 - 17 mbps, which I can only attribute to me not having applied the patch correctly. So always test your bitrates before going out into a shoot! I can't work out why this patch won't work for me as I don't have problems with any others.

Anyhow, just wanted to express my thanks for all the work you guys do on this forum, and to show how great this little camera can look even without a massive high bitrate patch!

Hope you all like it. Thanks
