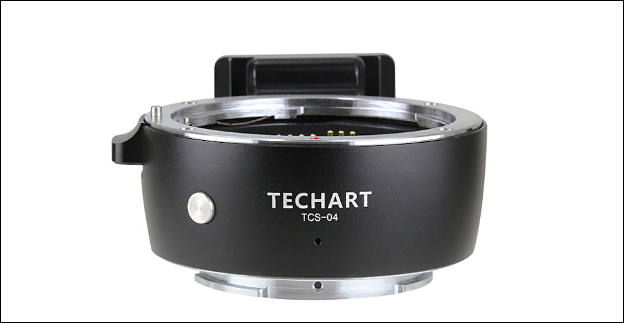

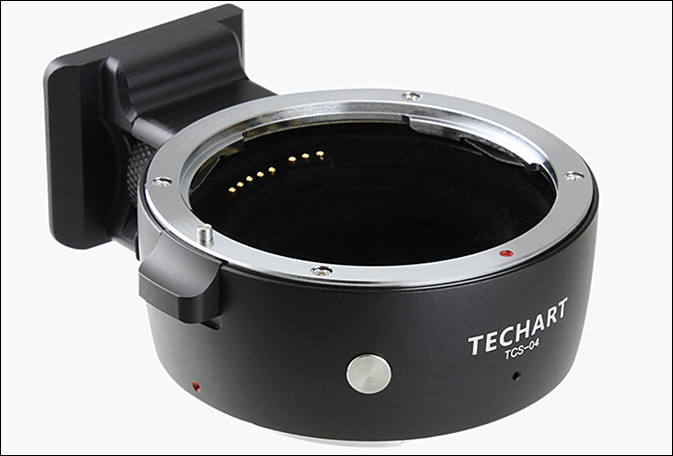

Techart TCS-04 Canon EF to Sony E-mount autofocus adapter
  • image

    CS-04 is a fourth-generation adapter with an electronic contacts for using with Canon EF-mount lenses mounted to Sony E-mount cameras. The TCS-04 is optimized for high-performance phase-difference AF sensors, and offers high-speed response even with EF-mount lenses. In addition, the function button has a “quick return function” that can store the focus position. When you want to catch it again, you can call the focus position with one push, you can focus quickly, and it is useful for shooting dynamic scenes such as animals, sports and events.

    Supported mount

    • Lens mount: Canon EF
    • Supported camera mounts (models): Sony E (Sony α 9 | Sony α 7 R III | Sony α 7 III | Sony α 7 R II | Sony α 7 II | Sony α 6 500 | Sony α 6400


    • Electronic control of Canon EF mount lens, AF photography are possible (can attach to lens of EF-S standard)
    • Equipped with “Quick back function” by function button
    • Supports camera shake correction mechanism (Canon “IS”, Sigma “OS”, Tamron “VC”) in the lens
    • Compatible with internal camera shake correction mechanism
    • Information such as focal length and exposure of captured image is recorded as Exif data
    • Compatible with Continuous AF (AF-C)
    • Supports “face detection” “pupil AF”
    • Firmware can be updated via USB connection with a PC terminal
    • Control internal reflection by flocking inside the adapter
    • With removable tripod seat, the bottom of the tripod seat is compatible with AlcA Swiss.

    Function button

    Quick back function: memorize focus position with function button

    This function is useful when you want to remember the focus position of the subject when shooting dynamic scenes such as animals, sports, and events. When the subject is far away: Double-click the function button to near infinity. The focus can be moved to near infinity instantly with the function button, which is useful for lenses with a large amount of focus movement and lens extension, such as telephoto lenses and macro lenses.
